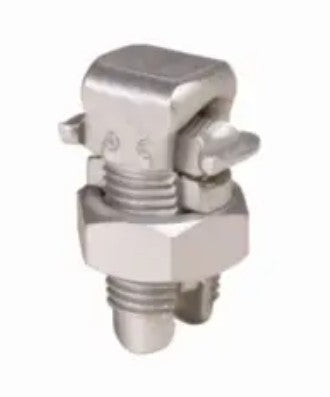

Burndy KSA350 | Aluminum Split Bolt Connector, Tin-Plated
Regular price
$65.19
Unit price
Brand: Burndy
|
SKU:
KSA350
Regular price
$65.19
Unit price
Description
Description
Burndy KSA350 | Aluminum Split Bolt Connector, Tin-Plated
Aluminum Split Bolt for Al/Al, Al/Cu, or Cu/Cu Conductors. Max Run to Min Tap: 350 kcmil-#4 Str, UL486B Listed.
Burndy - KSA350 - Features
- No scratch brushing or oxide inhibitor required
- Provides maximum pressure assuring a secure connection of run and tap conductors
- UL486B Listed
- Low contact resistance, provides equal coefficient of expansion
- Inhibits the reformation of oxides by producting a gas-tight seal
Specifications
Specifications
Burndy - KSA350 - Specifications
| Application | For All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper, Aluminum Alloy Tin Plated |
|---|---|
| Catalog Number | KSA350 |
| Connector Type | Split Bolt |
| Hardware Type | 1 3/8-12 UNF |
| Installation Torque Recommended in-lb | 650 LBS/in |
| Material | Aluminum |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | TRITAP, SERVIT |
| Temperature Rating | 194 |
| Trade Name | TRITAP™ SERVIT® |
| Type | KSA |
| UPC | 781810183526 |
| UPC 14 Digit GTIN | 00781810183526 |
