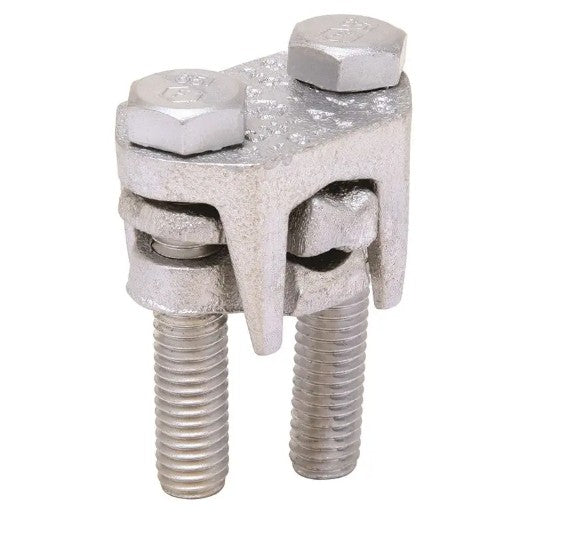

Burndy KVSU31 | Mechanical Connector with Spacer Bar
Regular price
$174.24
Unit price
Brand: Burndy
|
SKU:
10393231
Regular price
$174.24
Unit price
Description
Description
Burndy KVSU31 | Mechanical Connector with Spacer Bar
Tin-plated copper alloy connector with tin plated silicon bronze hardware. Spacer bar separates dissimilar conductors and provides long contact length,Tightening torque:325 in -lb,wrench size:3/4 cross flats.
Burndy - KVSU31 - Features
- Compact, tin-plated high strength copper alloy connector with spacer and tin-plated silicon bronze hardware
- Recommended for heavy duty connections
- Spacer separates dissimilar conductors and provides long contact length
- Neoprene ring prevents loss of shorter bolt during installation
- Longer peened bolt permits swivel action for easier installation
- CSA Listed for Copper
Specifications
Specifications
Burndy - KVSU31 - Specifications
| Application | For All Combinations of Copper, Aluminum, ACSR, AAAC And 5005, Heavy Duty Connections |
|---|---|
| Catalog Number | KVSU31 |
| Installation Torque Recommended in-lb | 325 LBS/in |
| Material | Copper |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | OKLIP |
| Trade Name | OKLIP™ |
| Type | KVSU, Universal |
| UPC | 781810082553 |
| UPC 14 Digit GTIN | 00781810082553 |
