Burndy QPX282C | Mechanical Parallel Clamp for Copper, Multiple Con...
Regular price
$150.04
Unit price
Brand: Burndy
|
SKU:
10350023
Regular price
$150.04
Unit price
Description
Description

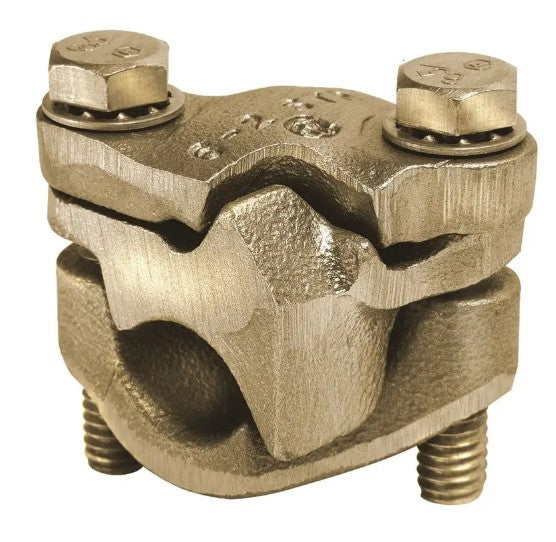

Burndy QPX282C | Mechanical Parallel Clamp for Copper, Multiple Configurations
VERSITAP™ Mechanical Parallel Clamp for Cu, Run: 1/0-4/0 AWG, Tap: #6-2 AWG. Capable of Tee, Cross, Parallel, Butt and Tap Configurations.
Burndy - QPX282C - Features
- VERSITAP™ Type QPX Parallel Clamps for copper are capable of Tee, Cross, Parallel, Butt and Tap configurations
- Range-taking, only 10 connectors are required to accommodate conductor sizes from #6 Stranded to 1000 kcmil
- Edges are rounded for easy taping
Specifications
Specifications
Burndy - QPX282C - Specifications
| Application | For Tee, Cross, Parallel, Butt And Tap Connections, Copper |
|---|---|
| Catalog Number | QPX282C |
| Connector Type | Universal Clamp |
| Installation Torque Recommended in-lb | 180 LBS/in |
| Material | Copper |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Physical Attribute - Number of Screws | 2 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plated | No |
| Plating Type | Unplated |
| Sub Brand | VERSITAP |
| Temperature Rating | 194 |
| Trade Name | VERSITAP™ |
| Type | QPX |
| UPC | 781810342008 |
| UPC 14 Digit GTIN | 00781810342008 |
