Brand: Burndy | SKU: 677275

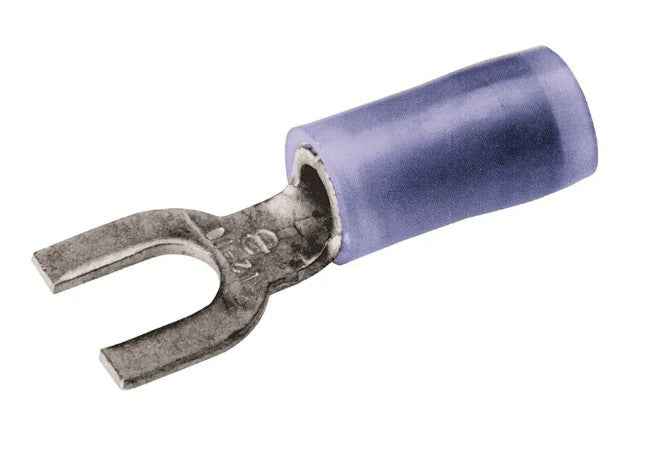

Burndy TN146F | Nylon Fork Terminal, 16-14 AWG

$2.55

Description

Fork terminals are constructed of pure electrolytic copper
Long brazed seam barrel with deep V groove inner serations for optimum conductivity, reliability and holding power after crimping
Fork tongue design for faster installation - screw only needs to be loosened for termination
Two or more terminals can be stacked on a common stud
Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
Electro-tin plating for durable, long lasting corrosion resistance
Inspection hole/skive provides an easy visual check of proper wire insertion
600 Volts maximum, 105°C maximum

Application	Power Connector
Catalog Number	TN146F
Color Code	Blue
Connector Type	Fork Terminal
Feature - Barrel Style	Shrouded
Insulation	Y
Insulation Type	Nylon
Material	Copper
Physical Attribute - Tongue Type	Fork
Plated	Yes
Plating Type	Tin
Sub Brand	INSULUG
Trade Name	INSULUG™
Type	TN-F
UPC	781810733127
UPC 14 Digit GTIN	00781810733127
