Brand: Burndy | SKU: 1018530

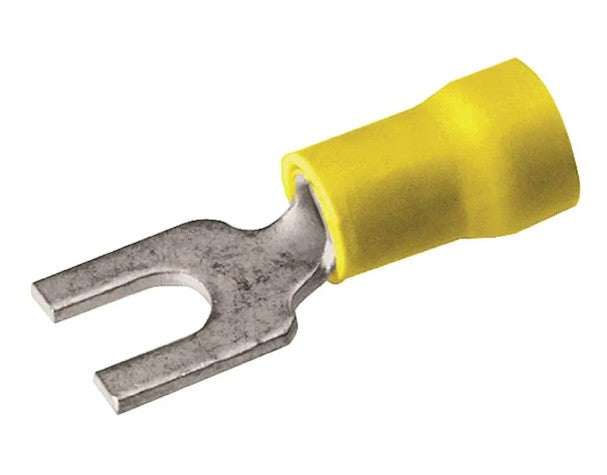

Burndy TP108F | Vinyl Fork Terminal, 12-10 AWG

Name: Burndy TP108F | Vinyl Fork Terminal, 12-10 AWG
Brand: Burndy
SKU: 1018530
Price: 1.27 USD
Availability: InStock

$1.27

Shipping calculated at checkout.

Description

Insulated Brazed Fork Terminal, Insulated Brazed Fork Terminal, Smooth Entry, #12-#10, 600V, #6-#8 Stud, Vinyl Insulated, Tin Plated.

Fork terminals are constructed of pure electrolytic copper
Long brazed seam barrel with deep V groove inner serations for optimum conductivity, reliability and holding power after crimping
Fork tongue design for faster installation - screw only needs to be loosened for termination
Two or more terminals can be stacked on a common stud
Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
Electro-tin plating for durable, long lasting corrosion resistance
Inspection hole/skive provides an easy visual check of proper wire insertion
600 Volts maximum, 105°C maximum

Application	For Commercial And Light Duty Industrial Control And Power Circuit Applications
Catalog Number	TP108F
Connector Type	Fork Terminal
Feature - Barrel Style	Shrouded
Insulation	Y
Insulation Type	Vinyl
Material	Copper
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Fork
Plated	Yes
Plating Type	Tin
Sub Brand	VINYLUG
Trade Name	VINYLUG™
Type	TP-F
UPC	781810710685
UPC 14 Digit GTIN	00781810710685
