Brand: Burndy | SKU: TP1610F

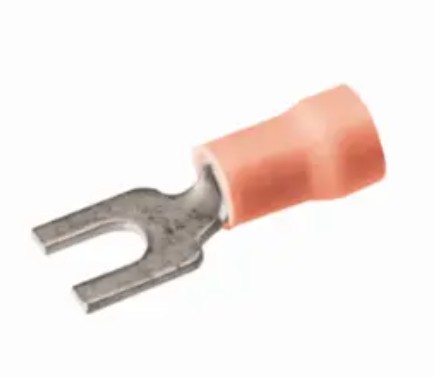

Burndy TP1610F | Vinyl Fork Terminal, 22-16 AWG

Name: Burndy TP1610F | Vinyl Fork Terminal, 22-16 AWG
Brand: Burndy
SKU: TP1610F
Price: 87.33 USD
Availability: InStock

$87.33

Shipping calculated at checkout.

Description

Fork Tongue Copper Terminal, 22-16 Max. Insul. Dia. Accom.: .145 Color Code: Red, 8-10, .95 in L, .41 in W, Polyvinylchloride Insulation.

Fork terminals are constructed of pure electrolytic copper
Long brazed seam barrel with deep V groove inner serations for optimum conductivity, reliability and holding power after crimping
Fork tongue design for faster installation - screw only needs to be loosened for termination
Two or more terminals can be stacked on a common stud
Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
Electro-tin plating for durable, long lasting corrosion resistance
Inspection hole/skive provides an easy visual check of proper wire insertion
600 Volts maximum, 105°C maximum

Application	For Commercial And Light Duty Industrial Control And Power Circuit Applications
Catalog Number	TP1610F
Color Code	Red
Connector Type	Fork Terminal
Feature - Barrel Style	Shrouded
Insulation	Y
Insulation Type	Vinyl
Material	Copper
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Fork
Plated	Yes
Plating Type	Tin
Sub Brand	VINYLUG
Trade Name	VINYLUG™
Type	TP-F
UPC	781810714881
UPC 14 Digit GTIN	00781810714881
