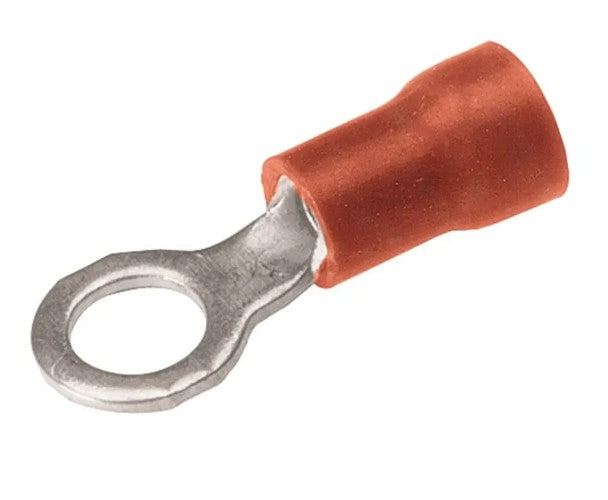

Burndy TP1638 | Vinyl Ring Terminal, 22-16 AWG
Regular price
$3.82
Unit price
Brand: Burndy
|
SKU:
874220
Regular price
$3.82
Unit price
Description
Description
Burndy TP1638 | Vinyl Ring Terminal, 22-16 AWG
Burndy - TP1638 - Features
- Expanded insulation support accepts standard and large wire diameters providing lower inventory requirements and greater flexibility
- Funnel entry for easy wire insertion
- Manufactured of pure electrolytic copper to provide maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Deep V groove serrations in the inner barrel provides added holding strength and better conductivity
Specifications
Specifications
Burndy - TP1638 - Specifications
| Application | For Commercial And Light Duty Industrial Control And Power Circuit Applications |
|---|---|
| Catalog Number | TP1638 |
| Color Code | Red |
| Connector Type | Ring Terminal |
| Feature - Barrel Style | Shrouded |
| Insulation | Y |
| Insulation Type | Vinyl |
| Material | Copper |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Ring |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | COMPRESSION TERMINAL, VINYLUG |
| Trade Name | VINYLUG™ |
| Type | Ring Tongue |
| UPC | 781810715444 |
| UPC 14 Digit GTIN | 00781810715444 |
