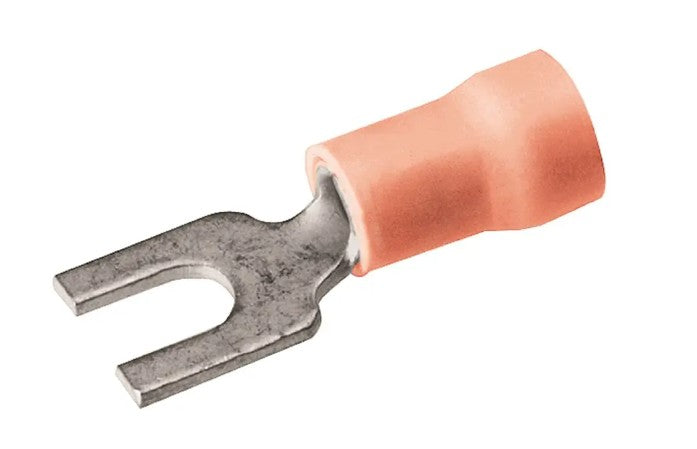

Burndy TP166F | Vinyl Fork Terminal, 22-16 AWG
Regular price
$1.27
Unit price
Brand: Burndy
|
SKU:
1018535
Regular price
$1.27
Unit price
Description
Description
Burndy TP166F | Vinyl Fork Terminal, 22-16 AWG
Copper Terminal, Fork Tongue, 22-16 AWG, #4-#6 Stud, Vinyl Insulated, Tin Plated.
Burndy - TP166F - Features
- Fork terminals are constructed of pure electrolytic copper
- Long brazed seam barrel with deep V groove inner serations for optimum conductivity, reliability and holding power after crimping
- Fork tongue design for faster installation - screw only needs to be loosened for termination
- Two or more terminals can be stacked on a common stud
- Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Electro-tin plating for durable, long lasting corrosion resistance
- Inspection hole/skive provides an easy visual check of proper wire insertion
- 600 Volts maximum, 105°C maximum
Specifications
Specifications
Burndy - TP166F - Specifications
| Application | For Commercial And Light Duty Industrial Control And Power Circuit Applications |
|---|---|
| Catalog Number | TP166F |
| Color Code | Red |
| Connector Type | Fork Terminal |
| Feature - Barrel Style | Shrouded |
| Insulation | Y |
| Insulation Type | Vinyl |
| Material | Copper |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Fork |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | VINYLUG |
| Trade Name | VINYLUG™ |
| Type | TP-F |
| UPC | 781810714485 |
| UPC 14 Digit GTIN | 00781810714485 |
