Burndy Y750HSXT | 10074286 | HYPRESS, 12 ton Hand Operated Hydrauli...
Description
Description

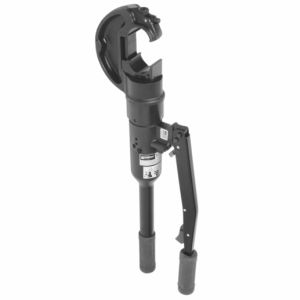

The BURNDY Y750HSXT Series HYPRESS(TM) is a wide mouth (1.65) hand operated hydraulic 12 ton crimping tool for use on virtually all compression applications. The C-shaped head rotates 355C relative to the handle and is mated to a patented rapid advance pump. The Y750HSXT provides easy tapping, splicing, and terminating of overhead lines, the full line of HYGROUND compression grounding connectors, NEC cable connections, and N30 - N650 Navy cable connections.The Y750HSXT accepts all BURNDY "U" dies for use on conductor ranges of #14 - 750 kcmil AL/CU and #4 - 556.5 kcmil ACSR conductors.Each Y750HSXT uses standard BURNDY dies and off-the-shelf connectors available world-wide. Supplied with a durable high impact formed carrying case to hold the tool, and die compartment to hold "U" die sets. (Dies sold separately.) All BURNDY Y750HSXT series tools are provided with a 5-year limited warranty.
Hand Operated Crimpers: Crimper Type - Hand Operated Hydraulic; Crimp Force - 12 Ton; Head - C-Shaped, Rotatable 355 deg; Dies - U Dies (not included); Terminal/Splice Type - Splices, Taps, Terminations, Tension Sleeves, Rods; Cable Size - 8-750 CU/AL, 4-556 ACSR, 1/2-1" Rods; Length - 23.50"; Case - Plastic; Additional Information - Rapid Ram Advance; Manufacturer Series - HYPRESS, Additional Info: Rapid Ram Advance
Specifications
Specifications
Burndy - Y750HSXT | 10074286 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Tools and Supplies
- Power Tools
- Tools and Installation
- Pneumatic Tools
- Hydraulic Crimpers
Burndy - Y750HSXT | 10074286 - Applications
- Covers a wide range of applications with a lightweight, self-contained system and provides easy tool removal from continous conductors with its C-shaped head.
- Easy tool positioning with its 355C head rotation
- Patented rapid advance pump for faster crimps
- Exposed positive die lock buttons for easy die change out and die retention
- Handle trigger drain for convenient ram retraction
- Quality assurance is provided with an audible "Pop-Off" pressure relief valve
- Comfort grip handles help ease operator fatigue with continuous use
- Long life expectancy from the company that provided the industry with the first self-contained hydraulic tool in 1934
- Rubber covered head and handles on Y750CHSXT for tool impact protection
- Supplied with high impact plastic carrying case
- 5-year limited warranty
Burndy - Y750HSXT | 10074286 - Specifications
| Power Input | None |
|---|---|
| Product Type | Crimper - Cable |
| Power Type | Pneumatic |
| Tool Capacity | None |
| Voltage | None |
| UNSPSC Code | 27112700 |
| Country of Origin | United States - Subject to change |
| Crimper Type | Hand Operated Hydraulic |
| Crimp Force | 12 Ton |
| Head | C-Shaped, Rotatable 355 deg |
| Dies | U Dies (not included) |
| Terminal/?Splice Type | Splices, Taps, Terminations,Tension Sleeves, Rods |
| Cable Size | 8-750 CU/AL, 4-556 ACSR, 1/2-1 in. Rods |
| Length | 23.5 in. |
| Case | Plastic |
