Brand: Burndy
|
SKU:
994614

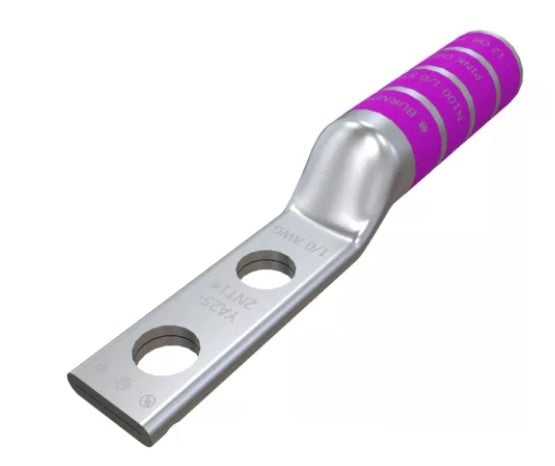

Burndy YA252NT14 | Copper Compression Terminal, Long Barrel, Narrow Tongue, 2-Hole
Regular price
$30.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA252NT14 | Copper Compression Terminal, Long Barrel, Narrow...
Regular price
$30.75
Unit price
Description
Description
Burndy YA252NT14 | Copper Compression Terminal, Long Barrel, Narrow Tongue, 2-Hole
YA252NT14, Copper Compression Terminal, Long Barrel, Narrow Tongue, 1/0 AWG, 2-Hole, 1/4" Stud, .625" Spacing, Tin Plated, UL/CSA.
Burndy - YA252NT14 - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
Specifications
Specifications
Burndy - YA252NT14 - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA252NT14 |
| Color Code | Pink |
| Connector Type | LONG BARREL |
| Die Index | 12 |
| Feature - Barrel Style | Chamfered |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810672594 |
| UPC 14 Digit GTIN | 00781810672594 |
