Burndy YA27L4TCG1 | Copper Compression Terminal, Standard Barrel, 4...
Regular price
$78.26
Unit price
Brand: Burndy
|
SKU:
YA27L4TCG1
Regular price
$78.26
Unit price
Description
Description

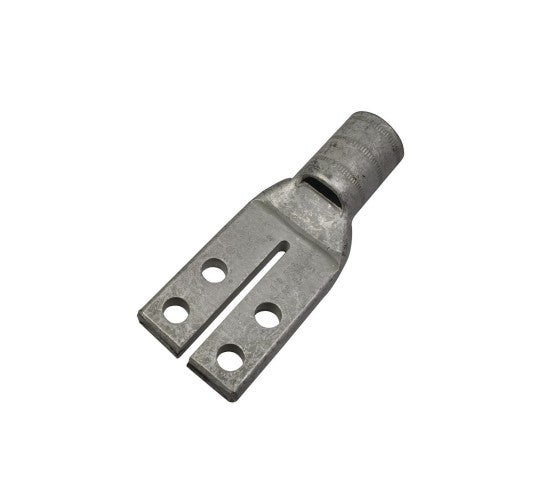

Burndy YA27L4TCG1 | Copper Compression Terminal, Standard Barrel, 4-Hole Split Pad
YA27L4TCG1, Copper Compression Terminal, 3/0 AWG Cu, 4-Hole Split Pad, 1/4" Stud, .62" Spacing (.75" between tongues), Standard Barrel, Tin Plated.
Burndy - YA27L4TCG1 - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
Specifications
Specifications
Burndy - YA27L4TCG1 - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA27L4TCG1 |
| Color Code | Orange |
| Connector Type | STANDARD BARREL |
| Die Index | 14 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 4 |
| Physical Attribute - Number of Holes | 4 |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810125830 |
| UPC 14 Digit GTIN | 00781810125830 |
