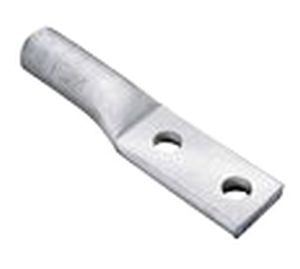

Burndy YA28A7 | 534013 | Hylug, Lug, Compression, Aluminum, 3/8 Inch, 2 Holes, 4/0 AWG, White
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA28A7 | 534013 | Hylug, Lug, Compression, Aluminum, 3/8 Inc...
Description
Description
Cable Lugs: Type - Compression Terminal; Material - Tin Plated Aluminum; Voltage - 35 kV; Barrel Length/Type - Standard; Lug L x Tongue W - 3.97 x 1.17 in.; Stud Holes - 2H; Stud Hole Spacing - 1.75 in. Spacing; Conductor Type - CU/AL; Conductor Size - Code - 4/0 AWG; Screw/Stud Size - 3/8 in.; Color Code - White; Additional Information - Straight Tongue, Die Code: 298, Without Inspection Window, 0.30 in. Thickness, Barrel Length: 1.39 in., Wire Strip Length: 1-5/8 in.; Manufacturer Series - Hylug YA-A, Additional Info: Straight Tongue, Die Code: 298, Without Inspection Window, 0.30 in. Thickness, Barrel Length: 1.39 in., Wire Strip Length: 1-5/8 in.
Burndy - YA28A7 | 534013 - Features
- Manufactured from high conductivity wrought aluminum with heavy duty wall thickness, internally bevelled barrel for easy cable insertion, clearly marked with wire size, die index, color code and proper number and location of crimps, factory prefilled with PENETROX(TM) oxide inhibiting compound, color coded end caps are inserted in barrel end to prevent foreign materials from entering and contaminating prior to use.
Specifications
Specifications
Burndy - YA28A7 | 534013 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YA28A7 | 534013 - Specifications
| Barrel | Standard |
|---|---|
| Bolt Hole | 3/8 Inch |
| Gauge | 4/0 AWG |
| Holes | 1 Hole |
| Inspection Hole | No |
| Lug Material | Aluminum |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Terminal |
| Material | Tin-plated Aluminum |
| Voltage | 35kV |
| Barrel Length/?Type | Standard |
| Stud Holes | 2 |
| Stud Hole Spacing | 1.75 in. Spacing |
| Conductor Type | CU/AL |
| Conductor Size - Code | 4/0 AWG |
