Brand: Burndy
|
SKU:
YA29L4TCG1

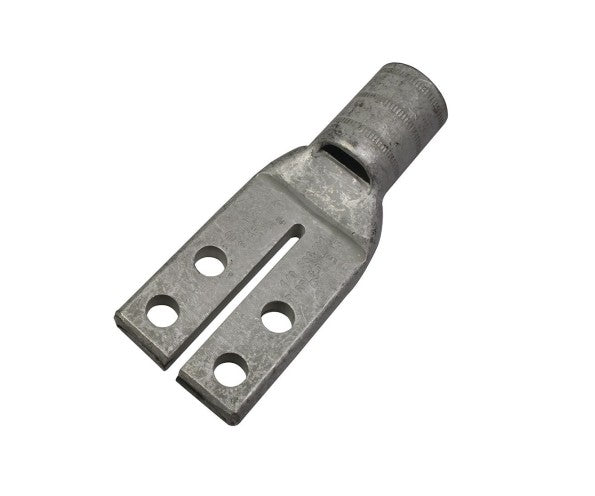

Burndy YA29L4TCG1 | Copper Compression Terminal, 4-Hole Split Pad, 1/4 in. Stud, Standard Barrel
Regular price
$85.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA29L4TCG1 | Copper Compression Terminal, 4-Hole Split Pad, ...
Regular price
$85.72
Unit price
Description
Description
Burndy YA29L4TCG1 | Copper Compression Terminal, 4-Hole Split Pad, 1/4 in. Stud, Standard Barrel
Cu Hylug (4 Hole Split Pad); 1 Hole with Inspection Window; 250 kcmil Code,250 Navy; 600V-35kV; 1/4" stud; Standard; Tin Plated; Compression; 0.28 in BCD.
Burndy - YA29L4TCG1 - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
Specifications
Specifications
Burndy - YA29L4TCG1 - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA29L4TCG1 |
| Color Code | Yellow |
| Connector Type | STANDARD BARREL |
| Die Index | 16 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 4 |
| Physical Attribute - Number of Holes | 4 |
| Plated | Yes |
| Plating Type | Tin |
| Temperature Rating | 194 |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810310410 |
| UPC 14 Digit GTIN | 00781810310410 |
