Brand: Burndy
|
SKU:
1004827

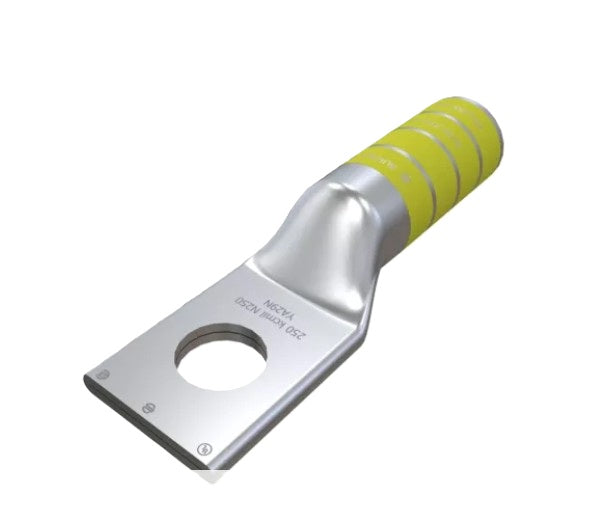

Burndy YA29N | 250 kcmil Code / 250 Navy Copper Compression Terminal, 1-Hole, Long Barrel, No Skive
Regular price
$36.90
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA29N | 250 kcmil Code / 250 Navy Copper Compression Termina...
Regular price
$36.90
Unit price
Brand: Burndy
|
SKU:
1004827
Regular price
$36.90
Unit price
Description
Description
Burndy YA29N | 250 kcmil Code / 250 Navy Copper Compression Terminal, 1-Hole, Long Barrel, No Skive
Cu Tubing Hylug; 1 Hole w/o Inspection Window; 250 kcmil Code,250 Navy; 600V-35kV; 1/2" stud; Long; Compression; 0.56 in BCD; Yellow.
Burndy - YA29N - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color
Specifications
Specifications
Burndy - YA29N - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA29N |
| Color Code | Yellow |
| Connector Type | LONG BARREL |
| Die Index | 16 |
| Feature - Barrel Style | Skived |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 1 |
| Physical Attribute - Number of Holes | 1 |
| Plated | Yes |
| Plating Type | Tin |
| Temperature Rating | 194 |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| UPC | 781810330579 |
| UPC 14 Digit GTIN | 00781810330579 |
