Brand: Burndy | SKU: YA2CL2TC516

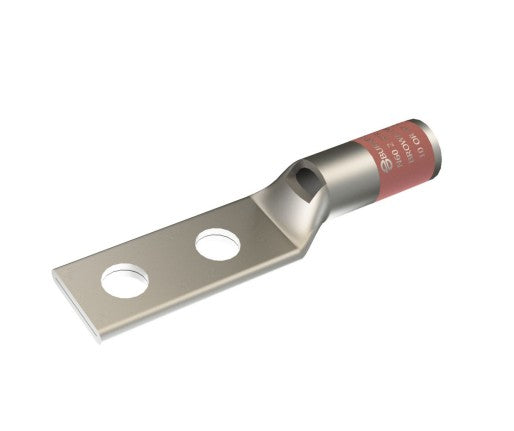

Burndy YA2CL2TC516 | Copper Compression Terminal, 2 AWG, 2-Hole, 5/16 in. Stud, Standard Barrel

$10.18

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Burndy YA2CL2TC516 | Copper Compression Terminal, 2 AWG, 2-Hole, 5/16 in. Stud, Standard Barrel

2 AWG Cu, 2-Hole, 5/16" Stud, 1" Spacing, Standard Barrel, Skive, Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Brown / 10 Die Index.

Burndy - YA2CL2TC516 - Features

Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
Standard barrel length is recommended for installations with limited space availability
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding
2-Hole design prevents rotation

Specifications

Burndy - YA2CL2TC516 - Specifications

Application	Wire Termination
Catalog Number	YA2CL2TC516
Color Code	Brown
Connector Type	STANDARD BARREL
Die Index	10
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Standard
Finish Type	Tin-Plated
Material	Copper
Number of Pad Holes	2
Physical Attribute - Number of Holes	2
Plated	Yes
Plating Type	Electro-Tin plated
Temperature Rating	194
Trade Name	HYLUG™
Type	Standard Barrel, Tin Plated
UPC	781810170793
UPC 14 Digit GTIN	00781810170793

Documents and Downloads

Burndy YA2CL2TC516 Data Sheet
