Brand: Burndy
|
SKU:
YA2CL445

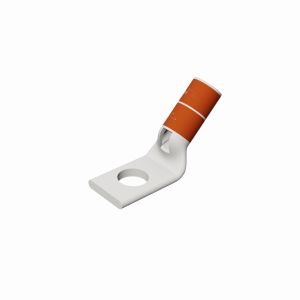

Burndy YA2CL445 | 50228F | Lug, Compression, Copper, 5/16 Inch, 1 Hole, 2 AWG STR, Brown
Regular price
$10.38
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA2CL445 | 50228F | Lug, Compression, Copper, 5/16 Inch, 1 H...
Regular price
$10.38
Unit price
Description
Description
Burndy YA2CL445 | 50228F | Lug, Compression, Copper, 5/16 Inch, 1 Hole, 2 AWG STR, Brown
Cable Lugs: Type - Terminal Lug; Material - Copper; Barrel Length/Type - Standard/45 Deg; Lug L x Tongue W - 1.74 x 0.61 in.; Stud Holes - 1H; Conductor Type - CU; Conductor Size - Code - 2 AWG STR; Screw/Stud Size - 5/16 in.; Color Code - Brown
Burndy - YA2CL445 | 50228F - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
- Lug
- Tongue Angle: 45 Degree
- Length: 1.74 Inch
- Tongue Type: Standard
- Barrel Style: Chamfered, Skived
- Bolt Hole Size: 0.39 Inch
- Stud Size: 5/16 Inch
- Thickness: 0.11 Inch
- B Length: 0.88 Inch
- Pad Width: 0.60 Inch
- Length: 15/16 Inch
- Number Of Holes: 1
- Wire Size: 2 AWG Copper Stranded
- Type Of Plating: Electro Plated Tin
- Color Code: Brown
- Index Number: 10
- Material: Copper
Specifications
Specifications
Burndy - YA2CL445 | 50228F - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YA2CL445 | 50228F - Specifications
| Holes | 1 Hole |
|---|---|
| Inspection Hole | No |
| Lug Material | Copper |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Terminal Lug |
| Material | Copper |
| Barrel Length/?Type | Standard / 45 Degree |
| Lug L x Tongue W | 1.74 x 0.61 in. |
| Stud Holes | 1 |
| Conductor Type | Copper |
| Conductor Size - Code | 2 AWG STR |
| Screw/?Stud Size | 5/16 in. |
