Brand: Burndy | SKU: YA2CL90

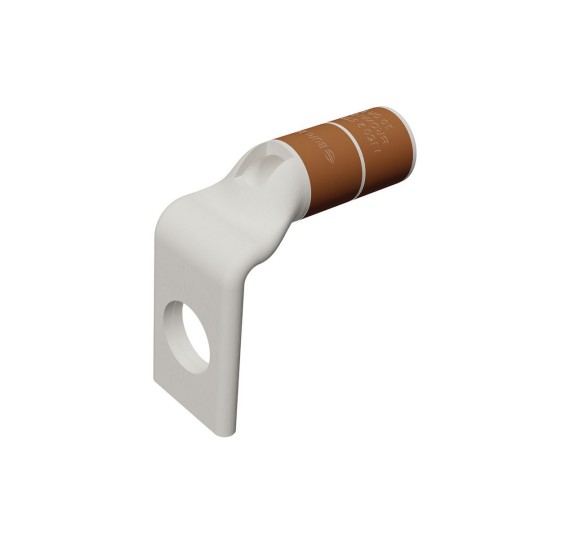

Burndy YA2CL90 | Copper Compression Terminal, 2 AWG, 60 Navy, 1-Hole, 5/16 in. Stud, Standard Barrel, 90°

$10.28

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Burndy YA2CL90 | Copper Compression Terminal, 2 AWG, 60 Navy, 1-Hole, 5/16 in. Stud, Standard Barrel, 90°

Cu Tubing Cu HYLUG™, 1 Hole with Inspection Window, #2 AWG Code, 60 Navy, 600V-35kV, 5/16" stud, Standard, Compression, 0.33 in BCD, Brown.

Burndy - YA2CL90 - Features

Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
Standard barrel length is recommended for installations with limited space availability
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding

Specifications

Burndy - YA2CL90 - Specifications

Application	Wire Termination
Catalog Number	YA2CL90
Color Code	Brown
Connector Type	STANDARD BARREL
Die Index	10
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Standard
Finish Type	Tin-Plated
Material	Copper
Number of Pad Holes	1
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Standard
Plated	Yes
Plating Type	Tin
Sub Brand	HYLUG,TERMINALS
Trade Name	HYLUG™
Type	Standard Barrel, Tin Plated
UPC	781810019993
UPC 14 Digit GTIN	00781810019993

Documents and Downloads

Burndy YA2CL90 Data Sheet
