Brand: Burndy
|
SKU:
YA302NFXB

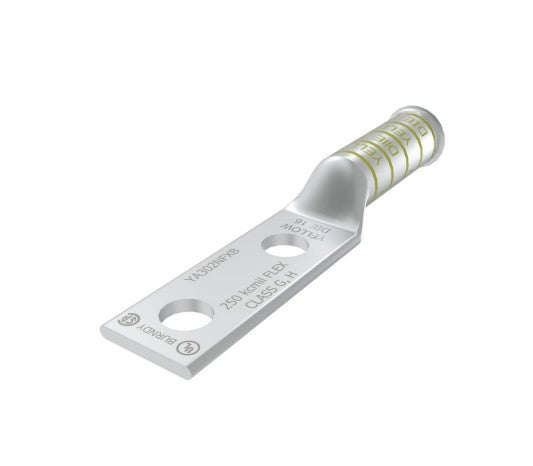

Burndy YA302NFXB | Copper Compression Terminal, 250 kcmil, 2-Hole, NEMA Spacing, Long Barrel, Belled
Regular price
$81.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA302NFXB | Copper Compression Terminal, 250 kcmil, 2-Hole, ...
Regular price
$81.18
Unit price
Brand: Burndy
|
SKU:
YA302NFXB
Burndy YA302NFXB | Copper Compression Terminal, 250 kcmil, 2-Hole, NEMA Spacing, Long Barrel, Belled
Regular price
$81.18
Unit price
Shipping calculated at checkout.
Description
Description
Burndy YA302NFXB | Copper Compression Terminal, 250 kcmil, 2-Hole, NEMA Spacing, Long Barrel, Belled
250 kcmil, G,H CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Bell End, Tin Plated, UL/CSA, 90°C, Up to 35kV, Yellow Color Code, 16 Die Index.
Burndy - YA302NFXB - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
Specifications
Specifications
Burndy - YA302NFXB - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA302NFXB |
| Color Code | Yellow |
| Connector Type | LONG BARREL |
| Die Index | 16 |
| Feature - Barrel Style | Belled |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| UPC | 781810054529 |
| UPC 14 Digit GTIN | 00781810054529 |
