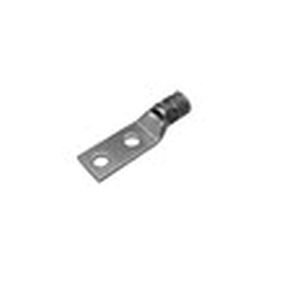

Burndy YA31L2TC38 | 50222T | Hylug, Lug, Compression, Copper, 3/8 I...
Description
Description
Cable Lugs: Type - Compression Terminal; Material - Tin Plated Copper; Voltage - 35 kV; Barrel Length/Type - Standard/Short; Lug L x Tongue W - 3.51 x 1.29 in.; Stud Holes - 2H; Stud Hole Spacing - 1.00 in. Spacing; Conductor Type - CU; Conductor Size - Code - 350 MCM; Screw/Stud Size - 3/8 in.; Color Code - Red; Additional Information - Straight Tongue, Die Code: 18 324, Without Inspection Hole, Barrel Length: 1.06 in., Thickness: 0.18 in., Wire Strip Length: 1-1/8 in., Chamfered; Manufacturer Series - Hylug YA-L-2TC, Additional Info: Straight Tongue, Die Code: 18 324, Without Inspection Hole, Barrel Length: 1.06 in., Thickness: 0.18 in., Wire Strip Length: 1-1/8 in., Chamfered
Burndy - YA31L2TC38 | 50222T - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
Specifications
Specifications
Burndy - YA31L2TC38 | 50222T - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YA31L2TC38 | 50222T - Specifications
| Barrel | Short |
|---|---|
| Bolt Hole | 3/8 Inch |
| Gauge | 350Kcmil (Aka Mcm) |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Terminal |
| Material | Tin-plated Copper |
| Voltage | 35kV |
| Barrel Length/?Type | Standard / Short |
| Stud Holes | 2 |
| Stud Hole Spacing | 1.00 in. Spacing |
| Conductor Type | Copper |
| Conductor Size - Code | 350 MCM |
