Brand: Burndy
|
SKU:
930978

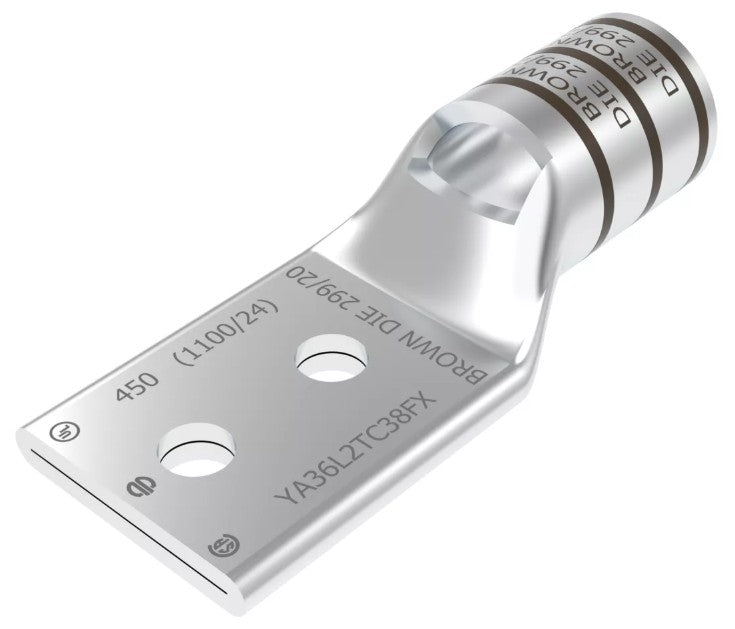

Burndy YA36L2TC38FX | Copper Compression Terminal, 500 kcmil G/H, 444 DLO, 2-Hole, 3/8 in. Stud, 1 in. Spacing
Regular price
$37.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA36L2TC38FX | Copper Compression Terminal, 500 kcmil G/H, 4...
Regular price
$37.27
Unit price
Description
Description
Burndy YA36L2TC38FX | Copper Compression Terminal, 500 kcmil G/H, 444 DLO, 2-Hole, 3/8 in. Stud, 1 in. Spacing
500 kcmil G, H, 444 DLO Cu, 2-Hole, 3/8" Stud, 1" Spacing, Standard, Skive, Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Brown / 20 or 299 Index.
Burndy - YA36L2TC38FX - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
Specifications
Specifications
Burndy - YA36L2TC38FX - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA36L2TC38FX |
| Color Code | Brown |
| Connector Type | STANDARD BARREL |
| Die Index | 20 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | TERMINALS, HYLUG |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810150405 |
| UPC 14 Digit GTIN | 00781810150405 |
