Brand: Burndy
|
SKU:
10704771

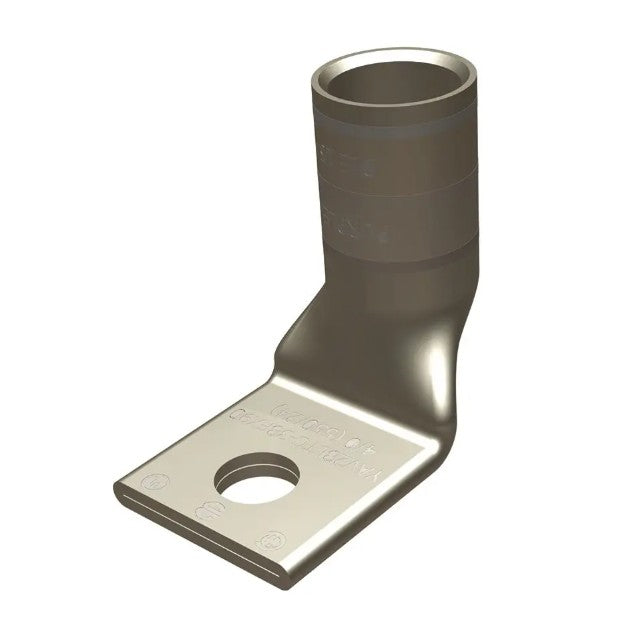

Burndy YA38LTC12FX90 | Copper Compression Terminal, 500 kcmil, 1-Hole, Long Barrel, 90°
Regular price
$68.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA38LTC12FX90 | Copper Compression Terminal, 500 kcmil, 1-Ho...
Regular price
$68.88
Unit price
Description
Description
Burndy YA38LTC12FX90 | Copper Compression Terminal, 500 kcmil, 1-Hole, Long Barrel, 90°
500 kcmil H,I,K / 550 kcmil G,H,I,535 DLO Cu, 1-Hole, 1/2" Stud, 90 Degree Pad Angle, Standard, Skive, Chamfer, Tin Plated, UL/CSA, 90°C, Pink / L99 Index.
Burndy - YA38LTC12FX90 - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
Specifications
Specifications
Burndy - YA38LTC12FX90 - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA38LTC12FX90 |
| Color Code | Pink |
| Connector Type | STANDARD BARREL |
| Die Index | L99 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 1 |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810021453 |
| UPC 14 Digit GTIN | 00781810021453 |
Documents and Downloads
Documents and Downloads
