Brand: Burndy
|
SKU:
YA38LTC38FX

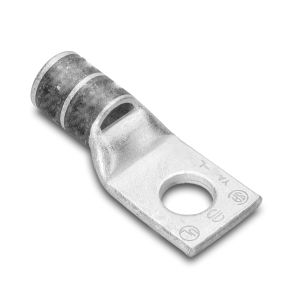

Burndy YA38LTC38FX | 25005676 | Hylug, Lug, Compression, Copper, 3/8 Inch, 1 Hole, Pink
Regular price
$38.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA38LTC38FX | 25005676 | Hylug, Lug, Compression, Copper, 3/...
Regular price
$38.02
Unit price
Description
Description
Burndy YA38LTC38FX | 25005676 | Hylug, Lug, Compression, Copper, 3/8 Inch, 1 Hole, Pink
Additional Info: Conductor Inspection Hole
Burndy - YA38LTC38FX | 25005676 - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
- Compression Lug
- Tongue Angle: Straight
- Length: 3.34 Inch
- Barrel Style: Chamfered
- Bolt Hole Size: 0.39 Inch
- Stud Size: 3/8 Inch
- Barrel Type: Short
- Thickness: 0.27 Inch
- B Length: 1.45 Inch
- Pad Width: 1.84 Inch
- Strip
- Length: 1-7/16 Inch
- Wire Size: 500 KCMIL Flex, 535.3 KCMIL (1325/#24) DLO
- Type Of Plating: Tin
- Color Code: Pink
- Index Number: L99
- Material: Copper
Specifications
Specifications
Burndy - YA38LTC38FX | 25005676 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YA38LTC38FX | 25005676 - Specifications
| Barrel | Standard |
|---|---|
| Bolt Hole | 3/8 Inch |
| Gauge | 500Kcmil (Aka Mcm) |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Terminal |
| Material | Copper, Tin-plated |
| Voltage | 35kV |
| Barrel Length/?Type | Standard |
| Stud Holes | 1 |
| Conductor Type | Copper |
| Conductor Size - Flex | 535.3 Flex 1325/24 Str |
| Screw/?Stud Size | 3/8" |
