Brand: Burndy
|
SKU:
YA44L2NT38FX90

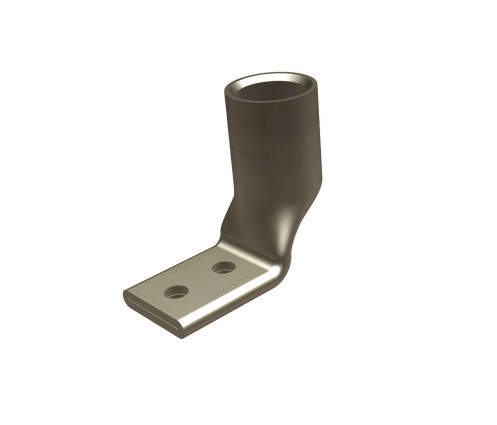

Burndy YA44L2NT38FX90 | Copper Compression Terminal, 750 kcmil G/H, 777 DLO, 2-Hole, Standard Barrel, Narrow Tongue, 90°
Regular price
$115.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA44L2NT38FX90 | Copper Compression Terminal, 750 kcmil G/H,...
Regular price
$115.53
Unit price
Brand: Burndy
|
SKU:
YA44L2NT38FX90
Regular price
$115.53
Unit price
Shipping calculated at checkout.
Description
Description
Burndy YA44L2NT38FX90 | Copper Compression Terminal, 750 kcmil G/H, 777 DLO, 2-Hole, Standard Barrel, Narrow Tongue, 90°
Cu Comp Terminal Flex Cond, 2 Hole/W/InspWindow, 777.7 kcmil(1925/#24)DLO, 750 kcmil FLEX, 600 V-35 kV, 3/8" Stud, 1.00" Spacing, 90 Deg Bent, Std bbl.
Burndy - YA44L2NT38FX90 - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
Specifications
Specifications
Burndy - YA44L2NT38FX90 - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA44L2NT38FX90 |
| Color Code | Yellow |
| Connector Type | STANDARD BARREL |
| Die Index | L115 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Straight |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810055397 |
| UPC 14 Digit GTIN | 00781810055397 |
