Brand: Burndy
|
SKU:
YA44N

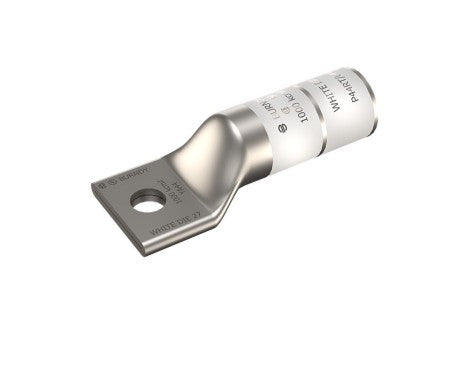

Burndy YA44N | Copper Compression Terminal, 1000 kcmil, 1-Hole, 1/2 in. Stud, Long Barrel
Regular price
$243.21
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA44N | Copper Compression Terminal, 1000 kcmil, 1-Hole, 1/2...
Regular price
$243.21
Unit price
Brand: Burndy
|
SKU:
YA44N
Regular price
$243.21
Unit price
Description
Description
Burndy YA44N | Copper Compression Terminal, 1000 kcmil, 1-Hole, 1/2 in. Stud, Long Barrel
1000 kcmil CU, One Hole, 1/2 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV,WHITE Color Code, 27 Die Index.
Burndy - YA44N - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color
Specifications
Specifications
Burndy - YA44N - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA44N |
| Color Code | White |
| Connector Type | LONG BARREL |
| Die Index | 27 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 1 |
| Physical Attribute - Number of Holes | 1 |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| UPC | 781810088395 |
| UPC 14 Digit GTIN | 00781810088395 |
