Brand: Burndy
|
SKU:
A163836N81
Burndy YA6C | Copper Compression Terminal, 6 AWG, 1-Hole, 1/4 in. Stud, Long Barrel
Regular price
$3.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA6C | Copper Compression Terminal, 6 AWG, 1-Hole, 1/4 in. S...
Regular price
$3.82
Unit price
Description
Description

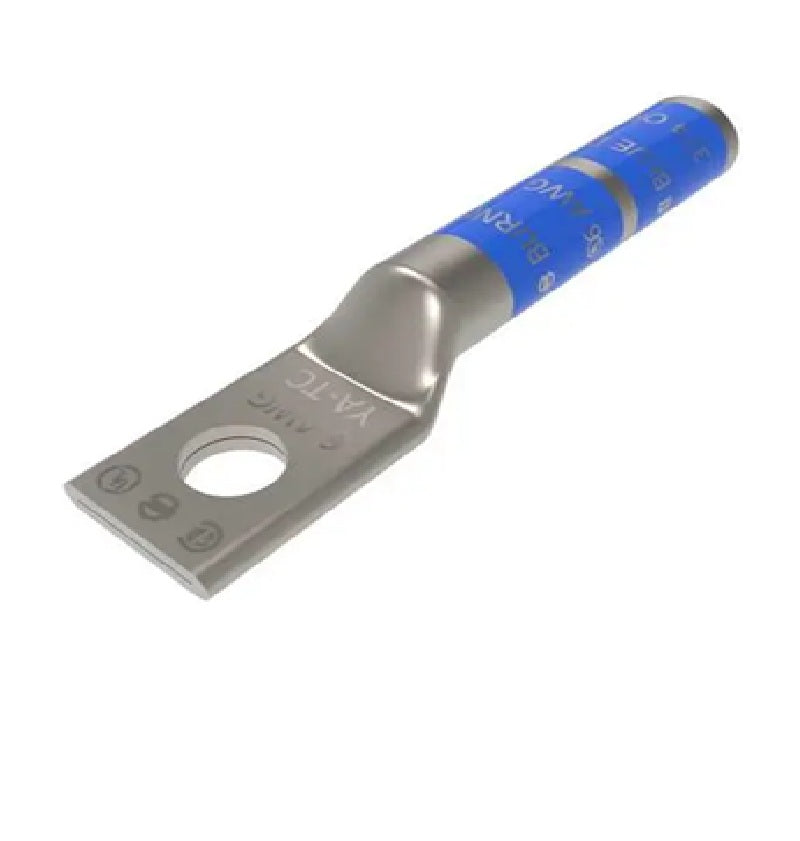

Burndy YA6C | Copper Compression Terminal, 6 AWG, 1-Hole, 1/4 in. Stud, Long Barrel
6 AWG CU, One Hole, 1/4 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV,BLUE Color Code, 7 or 374 Die Index.
Burndy - YA6C - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color
Specifications
Specifications
Burndy - YA6C - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA6C |
| Color Code | Blue |
| Connector Type | LONG BARREL |
| Die Index | 7 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 1 |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Straight |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| UPC | 781810501757 |
| UPC 14 Digit GTIN | 00781810501757 |
