Brand: Burndy
|
SKU:
YA6C2TC38SL

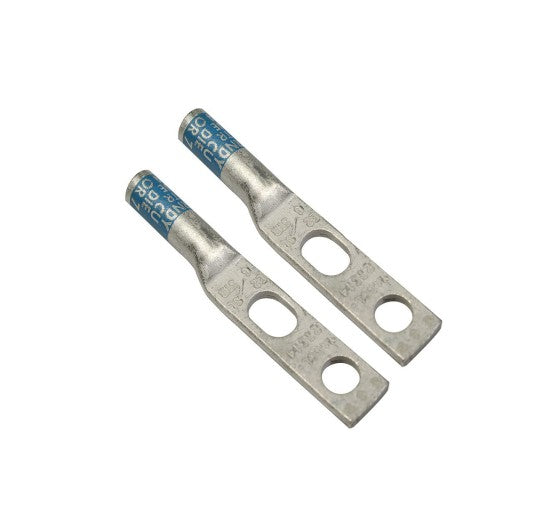

Burndy YA6C2TC38SL | Copper Compression Terminal, 6 AWG, 2-Hole Slotted, 3/8 in. Stud, Long Barrel
Regular price
$10.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA6C2TC38SL | Copper Compression Terminal, 6 AWG, 2-Hole Slo...
Regular price
$10.18
Unit price
Description
Description
Burndy YA6C2TC38SL | Copper Compression Terminal, 6 AWG, 2-Hole Slotted, 3/8 in. Stud, Long Barrel
Copper Two Hole HYLUG™ - Long Barrel ,6 AWG,3/8" Bolt Hole with 1" Spacing,Tin Plated,Color: Blue,Die Index: 7.
Burndy - YA6C2TC38SL - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
Specifications
Specifications
Burndy - YA6C2TC38SL - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA6C2TC38SL |
| Color Code | Blue |
| Connector Type | LONG BARREL |
| Die Index | 7 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Straight |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810237311 |
| UPC 14 Digit GTIN | 00781810237311 |
