Brand: Burndy
|
SKU:
YA6CL2TC14-BX
Burndy YA6CL2TC14 | Copper Compression Terminal, 6 AWG, 2-Hole, 1/4 in. Stud, 5/8 in. Spacing, Standard Barrel
Regular price
$178.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA6CL2TC14 | Copper Compression Terminal, 6 AWG, 2-Hole, 1/4...
Regular price
$178.43
Unit price
Brand: Burndy
|
SKU:
YA6CL2TC14-BX
Regular price
$178.43
Unit price
Shipping calculated at checkout.
Description
Description

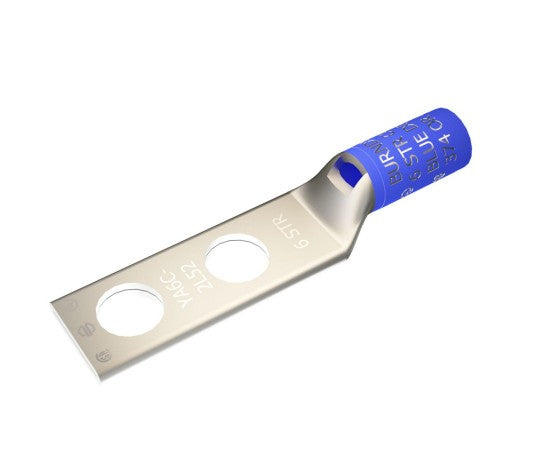

Burndy YA6CL2TC14 | Copper Compression Terminal, 6 AWG, 2-Hole, 1/4 in. Stud, 5/8 in. Spacing, Standard Barrel
Copper Compression Lug, 2 Hole w/ Inspection Window, 6 AWG, 1/4" Stud, 5/8" Stud Hole Spacing, Short Barrel, Tin - Electro Plated.
Burndy - YA6CL2TC14 - Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
Specifications
Specifications
Burndy - YA6CL2TC14 - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YA6CL2TC14 |
| Color Code | Blue |
| Connector Type | STANDARD BARREL |
| Die Index | 7 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810503607 |
| UPC 14 Digit GTIN | 00781810503607 |
