Brand: Burndy
|
SKU:
YA8CL1BOX

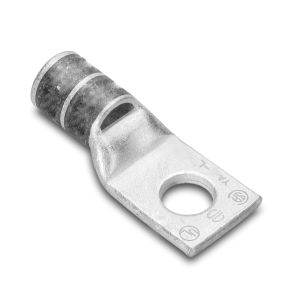

Burndy YA8CL1BOX | 50228N | Hylug, Lug, Compression, Copper, 1 Hole, 1/4 Inch, 8 AWG, Red
Regular price
$2.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA8CL1BOX | 50228N | Hylug, Lug, Compression, Copper, 1 Hole...
Regular price
$2.55
Unit price
Description
Description
Burndy YA8CL1BOX | 50228N | Hylug, Lug, Compression, Copper, 1 Hole, 1/4 Inch, 8 AWG, Red
Additional Info: Conductor Inspection Hole
Burndy - YA8CL1BOX | 50228N - Features
- Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness
- Barrel diameter closely matches commercial (code) cable and Navy cable diameters
- Electro-tin plated, electro-lead plated with Burndy’s proprietary brite finish
- Internally beveled barrel end provides easy cable insertion
- Each connector is clearly marked with the wire size and type, die index, and color coding
Specifications
Specifications
Burndy - YA8CL1BOX | 50228N - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YA8CL1BOX | 50228N - Specifications
| Barrel | Standard |
|---|---|
| Bolt Hole | 1/4 Inch |
| Gauge | 8 AWG |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Terminal |
| Material | Copper, Tin-plated |
| Voltage | 35kV |
| Barrel Length/?Type | Standard |
| Stud Holes | 1 |
| Conductor Type | Copper |
| Conductor Size - Code | 8 AWG |
| Screw/?Stud Size | 1/4" |
