Brand: Burndy
|
SKU:
YA8CL45

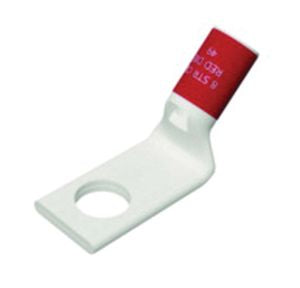

Burndy YA8CL45 | 50235V | Compression Lug, 0.44 Inch /Chamfered, Standard Barrel, 1 Hole
Regular price
$3.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YA8CL45 | 50235V | Compression Lug, 0.44 Inch /Chamfered, St...
Regular price
$3.90
Unit price
Description
Description
Burndy YA8CL45 | 50235V | Compression Lug, 0.44 Inch /Chamfered, Standard Barrel, 1 Hole
Burndy - YA8CL45 | 50235V - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
- Compression Lug
- Tongue Angle: 45 Degree
- Length: 1.02 Inch
- Tongue Type: Standard
- Barrel Style: Chamfered
- Bolt Hole Size: 0.20 Inch
- Stud Size: #8-#10
- Thickness: 0.08 Inch
- B Length: 0.44 Inch
- Pad Width: 0.41 Inch
- Length: 7/16 Inch
- Number Of Holes: 1
- Wire Size: 8 AWG Copper Stranded, 6 AWG Copper Solid
- Type Of Plating: Electro Plated Tin
- Color Code: Red
- Index Number: 49
- Material: Copper
- Voltage Rating: 600 Volt - 35 Kilo-Volt
Specifications
Specifications
Burndy - YA8CL45 | 50235V - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YA8CL45 | 50235V - Specifications
| Barrel | Standard |
|---|---|
| Bolt Hole | 8-10 Inch |
| Gauge | 8 AWG |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Lug |
| Insulation | Non-insulated |
| Material | Electro Tin-plated Copper |
| Voltage | 600V-35kV |
| Stud Holes | 1 |
| Conductor Type | Copper |
| Conductor Size - Code | 8 AWG Str, 6 AWG Sol |
| Conductor Size - Navy | 23 (7) MCM Str |
