Brand: Burndy
|
SKU:
YAD18516

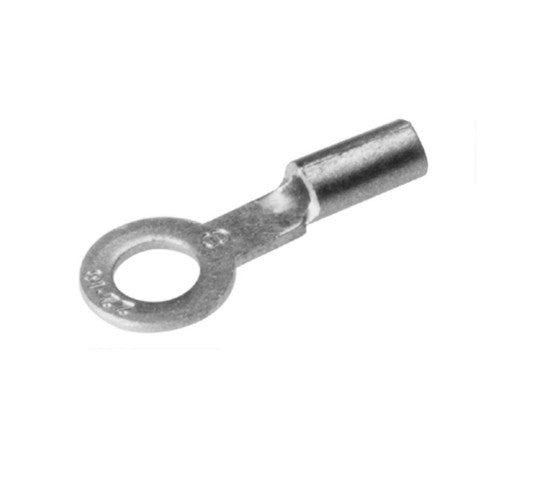

Burndy YAD18516 | Uninsulated Ring Terminal, 22-18 AWG, 1-Hole, 5/16 in. Stud
Regular price
$1.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAD18516 | Uninsulated Ring Terminal, 22-18 AWG, 1-Hole, 5/1...
Regular price
$1.27
Unit price
Description
Description
Burndy YAD18516 | Uninsulated Ring Terminal, 22-18 AWG, 1-Hole, 5/16 in. Stud
Burndy - YAD18516 - Features
- Constructed of pure electrolytic copper for maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Long brazed seam barrel and deep V groove inner serrations provide optimum conductivity reliability and holding power aftercrimping
- Electro-tin plating to provide durable, long-lasting corrosion resistance
- Wire range is clearly marked on terminal for easy identification
- Inspection hold for an easy visual check of wire insertion
- Long neck terminal permits easy bending and stacking of several terminals on a common stud
Specifications
Specifications
Burndy - YAD18516 - Specifications
| Application | For control wiring and other standard duty applications |
|---|---|
| Catalog Number | YAD18516 |
| Connector Type | Ring Terminal |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Material | Copper |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Ring |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Ring Tongue |
| UPC | 781810806272 |
| UPC 14 Digit GTIN | 00781810806272 |
