Brand: Burndy
|
SKU:
YAE12N

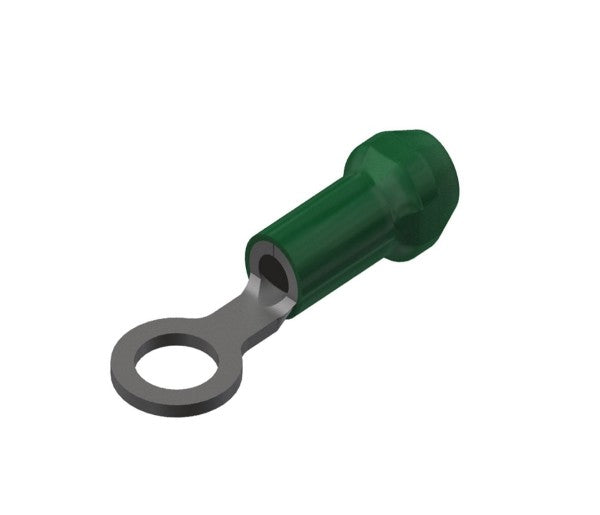

Burndy YAE12N | Nylon Ring Terminal, 14-12 AWG
Regular price
$1.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAE12N | Nylon Ring Terminal, 14-12 AWG
Regular price
$1.27
Unit price
Description
Description
Burndy YAE12N | Nylon Ring Terminal, 14-12 AWG
Insulated Copper Terminal, 8-10, 1.060 in L, .317 in W, 600 Volts Max.
Burndy - YAE12N - Features
- Multi-finger insulation grip provides superior insulation holding characteristics, especially on EPR and other elastic-type insulation
- Brazed seam for a strong, more durable termination
- Manufactured of pure electrolytic copper for maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Deep V groove, inner barrel serrations for optimum conductivity, reliability, and holding power
- Smooth funnel entry for easy wire insertion
Specifications
Specifications
Burndy - YAE12N - Specifications
| Application | For use on copper compression connections |
|---|---|
| Catalog Number | YAE12N |
| Color Code | Green |
| Connector Type | Ring Terminal |
| Feature - Barrel Style | Shrouded |
| Feature - Barrel Type | Standard |
| Insulation | Y |
| Insulation Type | Nylon |
| Material | Copper |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Ring Terminal |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | INSULUG |
| Temperature Rating | 105° C |
| Trade Name | INSULUG™ |
| Type | YAE-N |
| UPC | 781810804414 |
| UPC 14 Digit GTIN | 00781810804414 |
