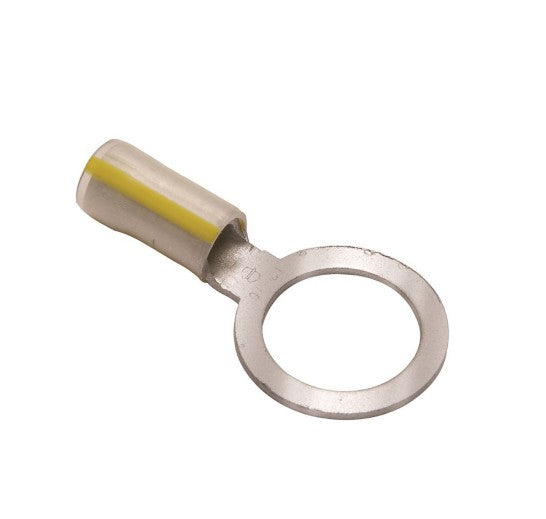

Burndy YAES10K58 | Radiation-Resistant Insulated Ring Terminal, 12-10 AWG

Burndy - YAES10K58 - Features

• Insulation provides 200 megarad radiation resistance plus successfully tested for insulation compatibility
• An integral one-piece copper barrel/insulation grip and wire strain relief design provides improved physical strength characteristics over a multi-piece design
• The insulation is locked in place and will not move or twist off, thereby maintains proper dielectric values
• Manufactured from pure electrolytic copper to provide maximum conductivity, low resistance and ductility for excellent crimp forming properties
• Bright tin-plated per MIL-T-10727 for durable long-lasting resistance to corrosion
• Deep inner barrel serrations provides excellent electrical conductivity and tensile strength values
• Brazed seam gives a stronger barrel design to minimize any possible splitting and eliminates folding
• Smooth funnel entry for easy wire insertion
• Color coded terminals provides easy wire size identification and inspection
• Coded raised dots in the die area of the connection after compression for visual identification that the correct tool and die were used for proper installation
• Inspection hole gives an additional visual check to ensure proper wire insertion
• Ring tongue design provides a secure termination under screw head that cannot be removed without the complete removal of the screw
• Multiple terminals may be stacked on a common stud easily providing flexibility and versatility
