Brand: Burndy
|
SKU:
10666497
Burndy YAG4CLTC14FX | Copper Compression Terminal, 1-Hole, 1/4 in. Stud, Standard Barrel
Regular price
$8.91
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAG4CLTC14FX | Copper Compression Terminal, 1-Hole, 1/4 in. ...
Regular price
$8.91
Unit price
Brand: Burndy
|
SKU:
10666497
Regular price
$8.91
Unit price
Description
Description

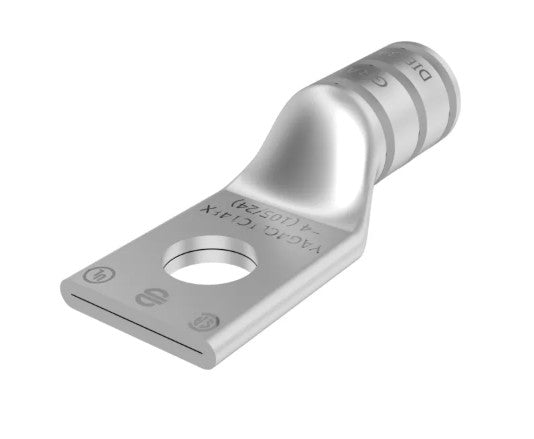

Burndy YAG4CLTC14FX | Copper Compression Terminal, 1-Hole, 1/4 in. Stud, Standard Barrel
4 Flex G,H,I,K,M,DLO, 4 AWG CU, 1-Hole, 1/4" Stud, Standard, Chamfer, Tin Plate, UL/CSA, 90°C, Up to 35kV, Gray / 8 or 346 Die Index.
Burndy - YAG4CLTC14FX - Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instruction
Specifications
Specifications
Burndy - YAG4CLTC14FX - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YAG4CLTC14FX |
| Color Code | Gray |
| Connector Type | STANDARD BARREL |
| Die Index | 8 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 1 |
| Physical Attribute - Number of Holes | 1 |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810158524 |
| UPC 14 Digit GTIN | 00781810158524 |
Documents and Downloads
Documents and Downloads
