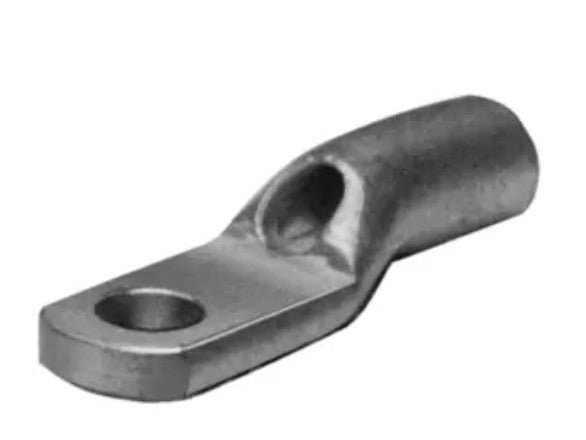

Burndy YAV10 | Uninsulated Ring Terminal, 12-10 AWG
Regular price
$1.27
Unit price
Brand: Burndy
|
SKU:
CC416217-033
Regular price
$1.27
Unit price
Description
Description
Burndy YAV10 | Uninsulated Ring Terminal, 12-10 AWG
Copper Terminal, Ring Tongue w/ Inspection Hole, Wire Range 12-10 AWG, #8-#10 Stud, Tin Plated.
Burndy - YAV10 - Features
- Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping
- Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor
- Double thick tongue structurally a very strong terminal tongue
- Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects
- Internally bevelled barrel for easy cable entry, especially for flexible conductors
- Inspection hole provides easy visual check for proper conductor insertion
- Electro-tin plated for a long lasting durable corrosion resistance
Specifications
Specifications
Burndy - YAV10 - Specifications
| Application | Industrials, Hospitals, Utilities, Marine, Computer |
|---|---|
| Application - For Use On | Copper Commercial (Code) Cable, Type AN Aircraft Cable, Extra Flexibile Conductors |
| Catalog Number | YAV10 |
| Connector Type | Ring Terminal |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Material | Copper |
| Military Specification | AS20659 |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Ring |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Ring Tongue |
| UPC | 781810024829 |
| UPC 14 Digit GTIN | 00781810024829 |
