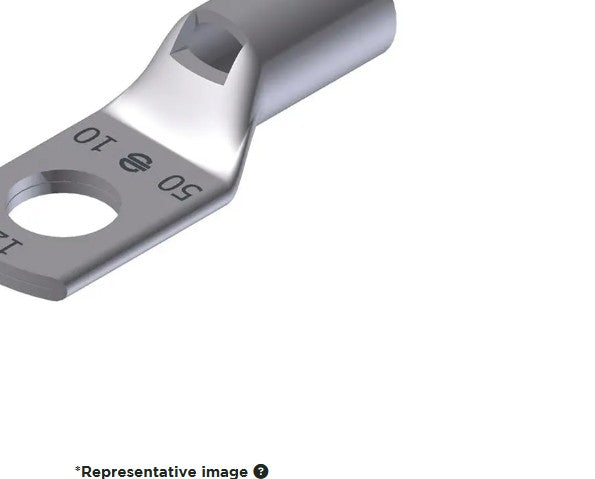

Burndy YAV10M5 | Compression Terminal
Regular price
$13.53
Unit price
Brand: Burndy
|
SKU:
10668521
Regular price
$13.53
Unit price
Description
Description
Burndy YAV10M5 | Compression Terminal
Copper Tubing Terminal, 1 Hole W/insp window, 10 mm Class 2,5, 49 Index, 5 mm Stud.
Burndy - YAV10M5 - Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping
- Compatible Standards: IEC61238-1, UL 486A-486B, CSA-C22.2 No. 65-03
Specifications
Specifications
Burndy - YAV10M5 - Specifications
| Application | Metric Wire Termination |
|---|---|
| Catalog Number | YAV10M5 |
| Connector Type | METRIC |
| Die Index | 49 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 1 |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Ring |
| Plated | Yes |
| Plating Type | Tin |
| Temperature Rating | 194 |
| Trade Name | HYLUG™ |
| Type | Metric Terminals |
| UPC | 781810321881 |
| UPC 14 Digit GTIN | 00781810321881 |
