Brand: Burndy
|
SKU:
YAV10R

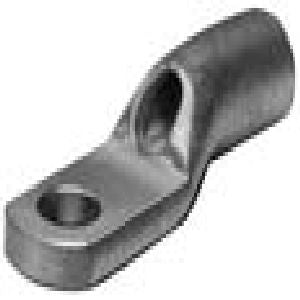

Burndy YAV10R | 603760 | Terminal, Ring, No 8 to No 10, 12 to 10 AWG
Regular price
$1.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAV10R | 603760 | Terminal, Ring, No 8 to No 10, 12 to 10 AWG
Regular price
$1.27
Unit price
Description
Description
Burndy YAV10R | 603760 | Terminal, Ring, No 8 to No 10, 12 to 10 AWG
Ring Lugs: Terminal Type - Right-Angle Tongue Ring; Stud Size - #8-10; Conductor Min - 12 AWG; Conductor Max - 10 AWG; Additional Information - 0.53 in L x 0.38 in W, Plating Type: Tinned, Additional Info: 0.53 in L x 0.38 in W, Plating Type: Tinned
Burndy - YAV10R | 603760 - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
- Compression Lug
- Length: 0.53 Inch
- Tongue Type: Ring
- Stud Size: #8-#10
- Barrel Type: Short
- Pad Width: 0.38 Inch
- Number Of Holes: 1
- Type Of Plating: TinConnector Type: Ring Terminal
- Material: Copper
Specifications
Specifications
Burndy - YAV10R | 603760 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Small Crimp Terminals and Splices
- Ring Lugs
Burndy - YAV10R | 603760 - Specifications
| Barrel | Short |
|---|---|
| Bolt Hole | 8-10 Inch |
| Gauge | #12 - #2 |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Terminal Type | Right-Angle Tongue Ring |
| Stud Size | #8 to #10 |
| Conductor Min | 12 AWG |
| Conductor Max | 10 AWG |
