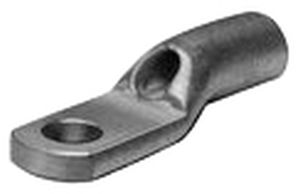

Burndy YAV10T345BOX | 514037 | Hylug, Lug, Compression, Copper, 1/4...
Description
Description
Cable Lugs: Type - Compression Terminal; Material - Tin Plated Copper; Voltage - 35 kV; Barrel Length/Type - Standard/45-deg; Lug L x Tongue W - 0.94 x 0.48 in.; Stud Holes - 1H; Conductor Type - CU; Conductor Size - Code - 12 -10 AWG; Screw/Stud Size - 1/4 in.; Additional Information - Straight Tongue, With Inspection Hole, Barrel Length: 0.41 in., Thickness: 0.047 in., Wire Strip Length: 7/16 in., Beveled, Chamfered; Manufacturer Series - Hylug YAV-T, Additional Info: Straight Tongue, With Inspection Hole, Barrel Length: 0.41 in., Thickness: 0.047 in., Wire Strip Length: 7/16 in., Beveled, Chamfered
Specifications
Specifications
Burndy - YAV10T345BOX | 514037 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YAV10T345BOX | 514037 - Specifications
| Barrel | Standard |
|---|---|
| Bolt Hole | 1/4 Inch |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Terminal |
| Material | Tin-plated Copper |
| Voltage | 35kV |
| Barrel Length/?Type | Standard / 45 Degree |
| Lug L x Tongue W | 0.94 x 0.48 in. |
| Stud Holes | 1 |
| Conductor Type | Copper |
| Conductor Size - Code | 12 -10 AWG |
