Brand: Burndy | SKU: 10556326

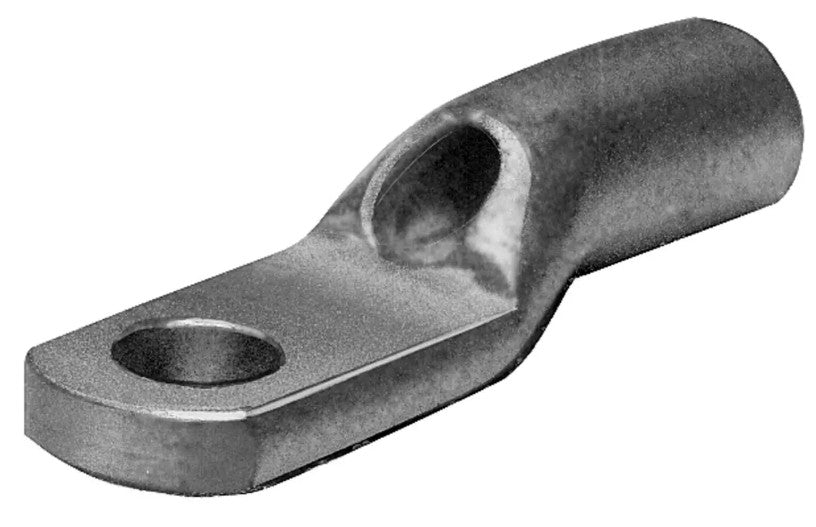

Burndy YAV10T7BOX | Uninsulated Ring Terminal, 12-10 AWG

Name: Burndy YAV10T7BOX | Uninsulated Ring Terminal, 12-10 AWG
Brand: Burndy
SKU: 10556326
Price: 1.27 USD
Availability: InStock

$1.27

Shipping calculated at checkout.

Description

Copper Compression Lug, 14-10 AWG (Str.)/12-10 AWG (solid), #4-#6 Stud, Short Barrel, Tin Plated.

Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping
Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor
Double thick tongue structurally a very strong terminal tongue
Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects
Internally bevelled barrel for easy cable entry, especially for flexible conductors
Inspection hole provides easy visual check for proper conductor insertion
Electro-tin plated for a long lasting durable corrosion resistance

Application	Industrials, Hospitals, Utilities, Marine, Computer
Application - For Use On	Copper Commercial (Code) Cable, Type AN Aircraft Cable, Extra Flexible Conductors
Catalog Number	YAV10T7BOX
Connector Type	Ring Terminal
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Standard
Material	Copper
Military Specification	AS20659
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Ring
Plated	Yes
Plating Type	Tin
Trade Name	HYLUG™
Type	Ring Tongue
UPC	781810541906
UPC 14 Digit GTIN	00781810541906
