Brand: Burndy
|
SKU:
10226816

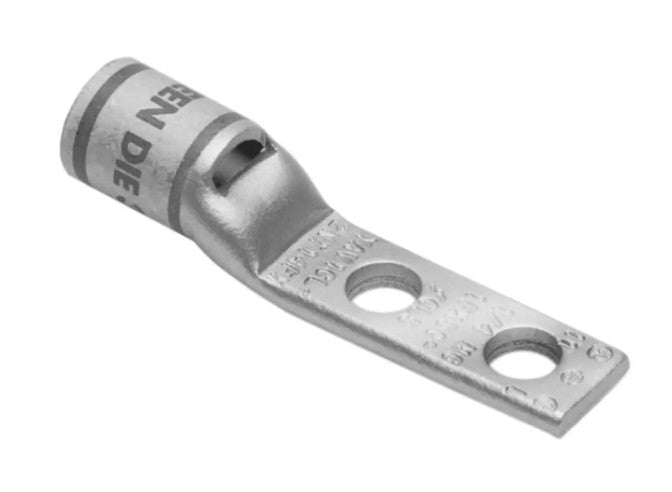

Burndy YAV1CL2NT14FX | Copper Compression Terminal, 2-Hole, 1/4 in. Stud, 5/8 in. Spacing, Narrow Tongue
Regular price
$8.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAV1CL2NT14FX | Copper Compression Terminal, 2-Hole, 1/4 in....
Regular price
$8.91
Unit price
Description
Description
Burndy YAV1CL2NT14FX | Copper Compression Terminal, 2-Hole, 1/4 in. Stud, 5/8 in. Spacing, Narrow Tongue
1 Flex G,H,I,K,M,DLO, 1 AWG (B/C) CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing, Standard Barrel, Inspection Window, Narrow Tongue, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Green Color Code, 11 or 375 Die Index.
Burndy - YAV1CL2NT14FX - Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connections are clearly marked with stamping and barrel color coding
Specifications
Specifications
Burndy - YAV1CL2NT14FX - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YAV1CL2NT14FX |
| Color Code | Green |
| Connector Type | STANDARD BARREL |
| Die Index | 11 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810234631 |
| UPC 14 Digit GTIN | 00781810234631 |
