Brand: Burndy
|
SKU:
YAV1CL2TC38FX

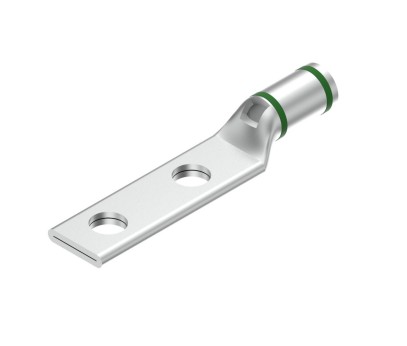

Burndy YAV1CL2TC38FX | Copper Compression Terminal, 2-Hole, 3/8 in. Stud, 1 in. Spacing, Standard Barrel
Regular price
$11.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAV1CL2TC38FX | Copper Compression Terminal, 2-Hole, 3/8 in....
Regular price
$11.56
Unit price
Description
Description
Burndy YAV1CL2TC38FX | Copper Compression Terminal, 2-Hole, 3/8 in. Stud, 1 in. Spacing, Standard Barrel
1 Flex G,H,I,K,M,DLO, 1 AWG (B/C) CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Green Color Code, 11 or 375 Die Index.
Burndy - YAV1CL2TC38FX - Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connections are clearly marked with stamping and barrel color coding
Specifications
Specifications
Burndy - YAV1CL2TC38FX - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YAV1CL2TC38FX |
| Color Code | Green |
| Connector Type | STANDARD BARREL |
| Die Index | 11 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Yes |
| Plating Type | Tin |
| Temperature Rating | 194 |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810022290 |
| UPC 14 Digit GTIN | 00781810022290 |
