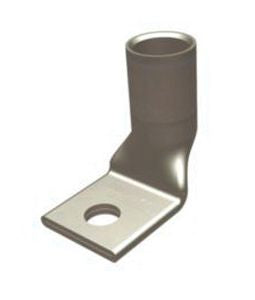

Burndy YAV25LTC516FX90 | 518533 | Compression Terminal, Standard, Chamfered/90 Degree Barrel

Burndy - YAV25LTC516FX90 | 518533 - Features

• Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
• Compression Lug
• Tongue Angle: 90 Degree
• Length: 1.09 Inch
• Tongue Type: Standard
• Barrel Style: Chamfered
• Bolt Hole Size: 0.33 Inch
• Stud Size: 5/16 Inch
• Thickness: 0.12 Inch
• B Length: 0.69 Inch
• Pad Width: 0.83 Inch
• Length: 11/16 Inch
• Number Of Holes: 1
• Wire Size: 1/0 AWG Flex, 1/0 AWG Copper Stranded, 1/0 AWG (275/#24) DLO
• Type Of Plating: Tin
• Color Code: Pink
• Index Number: 12
• Material: Copper
• Voltage Rating: 600 Volt - 35 Kilo-Volt
