Brand: Burndy
|
SKU:
YAV26L2TC14E2FX

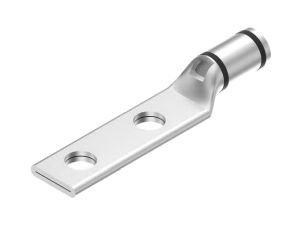

Burndy YAV26L2TC14E2FX | 518461 | Compression Lug, Standard/Chamfered, Skived Barrel, 2 Holes
Regular price
$12.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAV26L2TC14E2FX | 518461 | Compression Lug, Standard/Chamfer...
Regular price
$12.54
Unit price
Brand: Burndy
|
SKU:
YAV26L2TC14E2FX
Regular price
$12.54
Unit price
Shipping calculated at checkout.
Description
Description
Burndy YAV26L2TC14E2FX | 518461 | Compression Lug, Standard/Chamfered, Skived Barrel, 2 Holes
Burndy - YAV26L2TC14E2FX | 518461 - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
- Compression Lug
- Tongue Angle: Straight
- Length: 2.68 Inch
- Barrel Style: Chamfered, Skived
- Bolt Hole Size: 0.27 Inch
- Stud Size: 1/4 Inch
- Barrel Type: Short
- Thickness: 0.13 Inch
- B Length: 0.81 Inch
- Pad Width: 0.93 InchHole to Hole Distance: 0.75 Inch
- Strip
- Length: 13/16 Inch
- Wire Size: 2/0 AWG Flex, 2/0 AWG Copper Stranded, 2/0 AWG (375/#24) DLO
- Type Of Plating: Tin
- Color Code: Black
- Index Number: 13
- Material: Copper
Specifications
Specifications
Burndy - YAV26L2TC14E2FX | 518461 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YAV26L2TC14E2FX | 518461 - Specifications
| Barrel | Standard |
|---|---|
| Bolt Hole | 1/4 Inch |
| Gauge | 2/0 AWG |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Lug |
| Material | Tin-plated Copper |
| Voltage | 600V-35kV |
| Barrel Length/?Type | Standard/Chamfered, Skived |
| Stud Hole Spacing | 0.75 in. Space |
| Conductor Type | Copper |
| Conductor Size - Code | 2/0 AWG |
| Conductor Size - Flex | 2/0 Flex |
