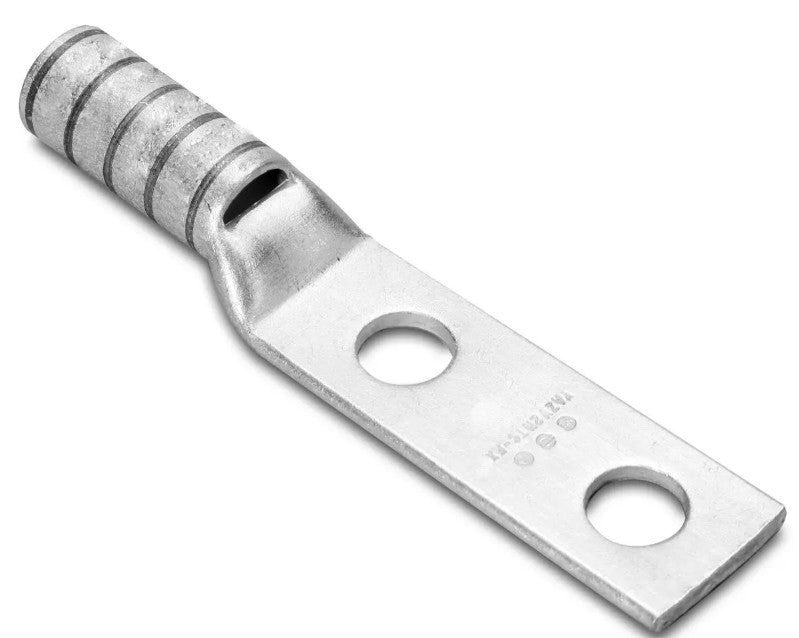

Burndy YAV29L2TC14E2FX | Copper Compression Terminal, 250 kcmil, 2-Hole, 1/4 in. Stud, 3/4 in. Spacing, Standard Barrel
250 kcmil, 4/0 G,H,I,K,M,DLO CU, Two Hole, 1/4 Stud Size, 3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Yellow Color Code, 16 Die Index.
Burndy - YAV29L2TC14E2FX - Features
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instructions
Specifications
Specifications
Burndy - YAV29L2TC14E2FX - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YAV29L2TC14E2FX |
| Color Code | Yellow |
| Connector Type | STANDARD BARREL |
| Die Index | 16 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Plated | Yes |
| Plating Type | Tin |
| Temperature Rating | 194 |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810305959 |
| UPC 14 Digit GTIN | 00781810305959 |
