Brand: Burndy
|
SKU:
1019681

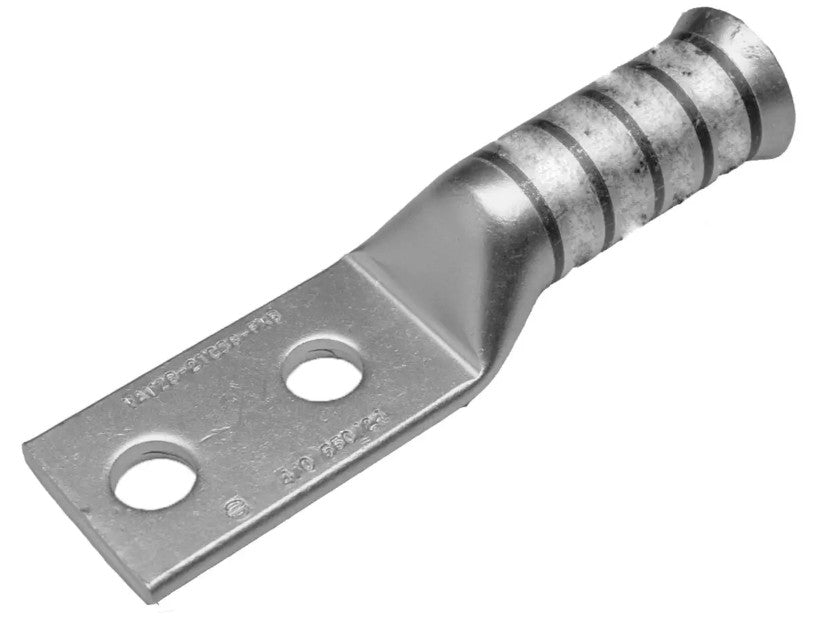

Burndy YAV2C2TC14FXB | Copper Compression Terminal, 2-Hole, 1/4 in. Stud, 5/8 in. Spacing, Long Barrel
Regular price
$19.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAV2C2TC14FXB | Copper Compression Terminal, 2-Hole, 1/4 in....
Regular price
$19.88
Unit price
Description
Description
Burndy YAV2C2TC14FXB | Copper Compression Terminal, 2-Hole, 1/4 in. Stud, 5/8 in. Spacing, Long Barrel
2 Flex G,H,I,K,M,DLO, 2 AWG CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing, Long Barrel, Bell End, Tin Plated, UL/CSA, 90°C, Up to 35kV, Brown Color Code, 10 Die Index.
Burndy - YAV2C2TC14FXB - Features
- Barrel is designed with a "belled" end opening at the wire entry to ensure smooth insertion of highly flexible stranded wire, preventing possible damaging of the wire strands during insertion
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instructions
Specifications
Specifications
Burndy - YAV2C2TC14FXB - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YAV2C2TC14FXB |
| Color Code | Brown |
| Connector Type | LONG BARREL |
| Die Index | 10 |
| Feature - Barrel Style | Belled |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| UPC | 781810171028 |
| UPC 14 Digit GTIN | 00781810171028 |
