Brand: Burndy | SKU: YAV2CL2NT14FX90

Burndy YAV2CL2NT14FX90 | Copper Compression Terminal, 2 Flex, 2-Hole, 1/4 in. Stud, 5/8 in. Spacing, Narrow Tongue, Standard Barrel, 90°

$16.15

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

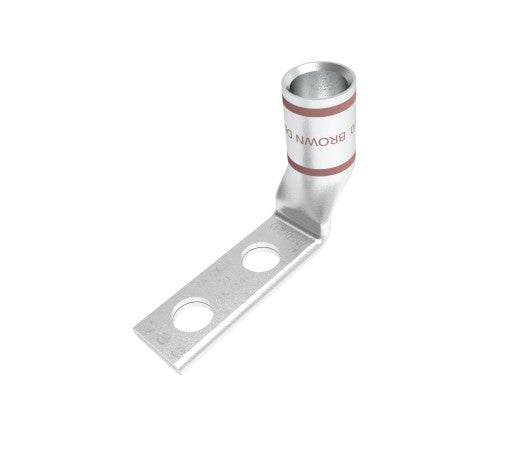

Burndy YAV2CL2NT14FX90 | Copper Compression Terminal, 2 Flex, 2-Hole, 1/4 in. Stud, 5/8 in. Spacing, Narrow Tongue, Standard Barrel, 90°

2 Flex G,H,I,K,M,DLO, 2 AWG CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing, Standard Barrel, Inspection Window, Narrow Tongue, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Brown Color Code, 10 Die Index.

Burndy - YAV2CL2NT14FX90 - Features

Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding
For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instructions

Specifications

Burndy - YAV2CL2NT14FX90 - Specifications

Application	Wire Termination
Catalog Number	YAV2CL2NT14FX90
Color Code	Brown
Connector Type	STANDARD BARREL
Die Index	10
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Standard
Finish Type	Tin-Plated
Material	Copper
Number of Pad Holes	2
Physical Attribute - Number of Holes	2
Plated	Yes
Plating Type	Tin
Trade Name	HYLUG™
Type	Standard Barrel, Tin Plated
UPC	781810469613
UPC 14 Digit GTIN	00781810469613

Documents and Downloads

Burndy YAV2CL2NT14FX90 Data Sheet
