Brand: Burndy
|
SKU:
YAV2CLTC516FX

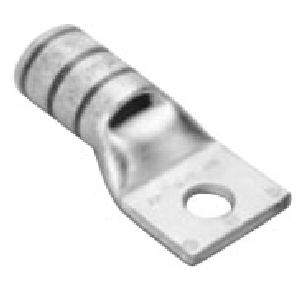

Burndy YAV2CLTC516FX | 518478 | Hylug, Lug, Compression, Copper, 1 Hole, 5/16 Inch, 2 AWG, Brown
Regular price
$7.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAV2CLTC516FX | 518478 | Hylug, Lug, Compression, Copper, 1 ...
Regular price
$7.64
Unit price
Description
Description
Burndy YAV2CLTC516FX | 518478 | Hylug, Lug, Compression, Copper, 1 Hole, 5/16 Inch, 2 AWG, Brown
Burndy - YAV2CLTC516FX | 518478 - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
- Compression Lug
- Tongue Angle: Straight
- Length: 1.69 Inch
- Tongue Type: Standard
- Barrel Style: Chamfered
- Bolt Hole Size: 0.33 Inch
- Stud Size: 5/16 Inch
- B
- Length: 0.63 Inch
- Pad Width: 0.68 Inch
- Strip
- Number Of Holes: 1
- Wire Size: 2 AWG Flex, 2 AWG Copper Solid, 2 AWG Copper Stranded, 3 AWG (125/#24) - 2 AWG (150/#24) DLO
- Type Of Plating: Electro Plated Tin
- Color Code: Brown
- Index Number: 10
- Material: Copper
Specifications
Specifications
Burndy - YAV2CLTC516FX | 518478 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YAV2CLTC516FX | 518478 - Specifications
| Barrel | Standard |
|---|---|
| Bolt Hole | 5/16 Inch |
| Gauge | 2 AWG |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Terminal |
| Material | Copper, Tin-plated |
| Barrel Length/?Type | Standard |
| Lug L x Tongue W | 1.69 x 0.68 in. |
| Conductor Type | Copper |
| Conductor Size - Code | 2 AWG |
| Conductor Size - Flex | 3 Flex 125/24, 2 Flex 150/24 |
| Conductor Size - Navy | 60 Navy |
