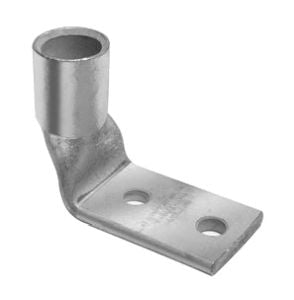

Burndy YAV4CL2TC14FX90 | 518436 | Compression Lug, Standard/90 Degree Barrel, CU Conductor, 2 Holes

Burndy - YAV4CL2TC14FX90 | 518436 - Features

• Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
• Compression Lug
• Tongue Angle: 90 Degree
• Length: 1.55 Inch
• Tongue Type: Standard
• Barrel Style: Chamfered
• Bolt Hole Size: 0.27 Inch
• Stud Size: 1/4 Inch
• Thickness: 0.09 Inch
• B Length: 0.5 Inch
• Pad Width: 0.55 Inch
• Hole to Hole Distance: 0.63 Inch
• Strip Length: 9/16 Inch
• Number Of Holes: 2
• Wire Size: 4 AWG Flex, 4 AWG Copper Solid, 4 AWG Copper Stranded, 5 AWG (91/#24) - 4 AWG (105/#24) DLO
• Type Of Plating: Electro Plated Tin
• Color Code: Gray
• Index Number: 8
• Material: Copper
• Voltage Rating: 600 Volt - 35 Kilo-Volt
