Brand: Burndy
|
SKU:
YAV4CL2TC38FX

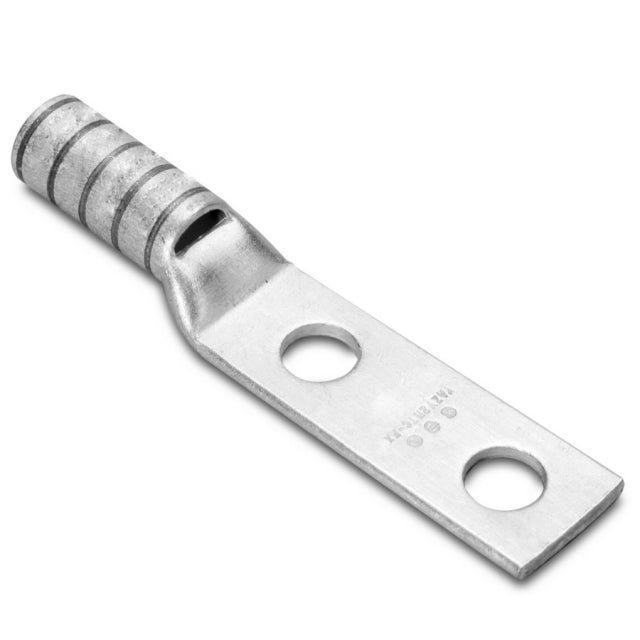

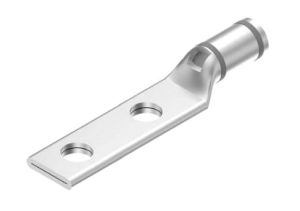

Burndy YAV4CL2TC38FX | 518438 | Compression Lug, Standard/Straight Barrel, CU Conductor
Regular price
$7.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAV4CL2TC38FX | 518438 | Compression Lug, Standard/Straight ...
Regular price
$7.64
Unit price
Description
Description
Burndy YAV4CL2TC38FX | 518438 | Compression Lug, Standard/Straight Barrel, CU Conductor
Burndy - YAV4CL2TC38FX | 518438 - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
- Compression Lug
- Tongue Angle: Straight
- Length: 2.68 Inch
- Tongue Type: Standard
- Barrel Style: Chamfered
- Bolt Hole Size: 0.39 Inch
- Stud Size: 3/8 Inch
- Barrel Type: Short
- Thickness: 0.08 Inch
- B Length: 0.5 Inch
- Pad Width: 0.58 InchHole to Hole Distance: 1 Inch
- Number Of Holes: 2
- Wire Size: 4 AWG Flex, 4 AWG Copper Solid, 4 AWG Copper Stranded, 5 AWG (91/#24) - 4 AWG (105/#24) DLO
- Type Of Plating: Electro Plated Tin
- Color Code: Gray
- Index Number: 8
- Material: Copper
Specifications
Specifications
Burndy - YAV4CL2TC38FX | 518438 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YAV4CL2TC38FX | 518438 - Specifications
| Barrel | Standard |
|---|---|
| Bolt Hole | 3/8 Inch |
| Gauge | 4 AWG |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Lug |
| Insulation | Non-insulated |
| Material | Electro Tin-plated Copper |
| Voltage | 600V-35kV |
| Stud Hole Spacing | 1 in. |
| Conductor Type | Copper |
| Conductor Size - Code | 4 AWG Sol, 4 AWG Str |
| Conductor Size - Flex | 4 Flex |
