Brand: Burndy | SKU: 10390900

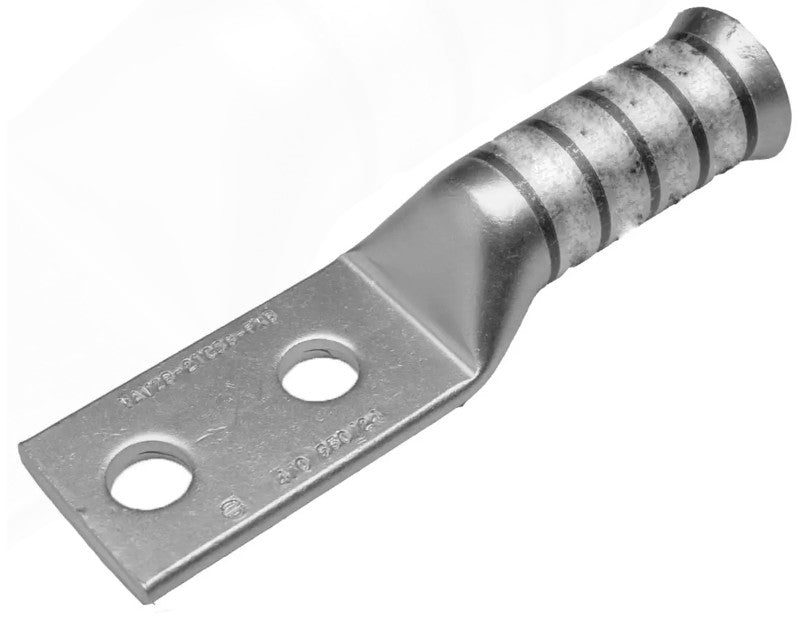

Burndy YAV6C2TC14FXB | Copper Compression Terminal, 1/4 in. Stud, 5/8 in. Spacing, Long Barrel

$10.18

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Burndy YAV6C2TC14FXB | Copper Compression Terminal, 1/4 in. Stud, 5/8 in. Spacing, Long Barrel

6 Flex G,H,I,K,M,DLO, 6 AWG CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing, Long Barrel, Bell End, Tin Plated, UL/CSA, 90°C, Up to 35kV, Blue Color Code, 7 or 374 Die Index.

Burndy - YAV6C2TC14FXB - Features

Barrel is designed with a "belled" end opening at the wire entry to ensure smooth insertion of highly flexible stranded wire, preventing possible damaging of the wire strands during insertion
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding
For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instructions

Specifications

Burndy - YAV6C2TC14FXB - Specifications

Application	Wire Termination
Catalog Number	YAV6C2TC14FXB
Color Code	Blue
Connector Type	LONG BARREL
Die Index	7
Feature - Barrel Style	Belled
Feature - Barrel Type	Long
Finish Type	Tin-Plated
Material	Copper
Number of Pad Holes	2
Physical Attribute - Number of Holes	2
Physical Attribute - Tongue Type	Standard
Plated	Yes
Plating Type	Tin
Trade Name	HYLUG™
Type	Long Barrel, Tin Plated
UPC	781810171905
UPC 14 Digit GTIN	00781810171905

Documents and Downloads

Burndy YAV6C2TC14FXB Data Sheet
