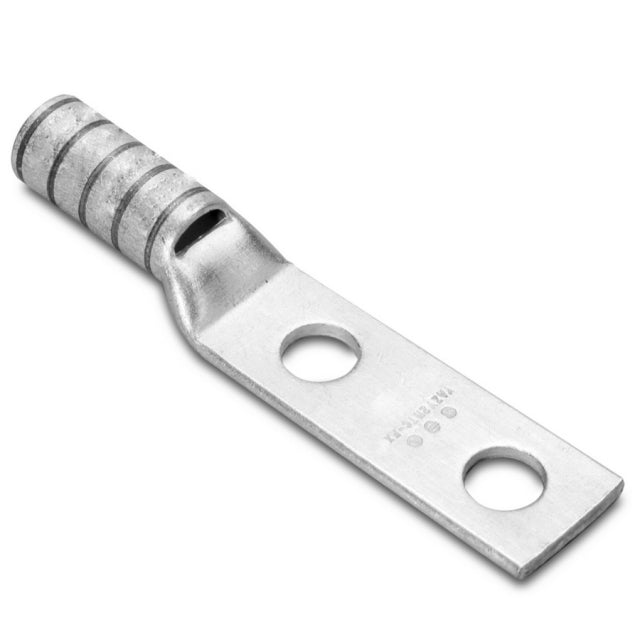

Burndy YAV6CL2TC14E2FX | 518495 | Lug, Compression, Short Barrel
Regular price
$6.36
Unit price
Brand: Burndy
|
SKU:
YAV6CL2TC14E2FX
Regular price
$6.36
Unit price
Description
Description
Burndy YAV6CL2TC14E2FX | 518495 | Lug, Compression, Short Barrel
Burndy - YAV6CL2TC14E2FX | 518495 - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
- Compression Lug
- Tongue Angle: Straight
- Length: 2.16 Inch
- Tongue Type: Standard
- Barrel Style: Chamfered
- Bolt Hole Size: 0.27 Inch
- Stud Size: 1/4 Inch
- B
- Length: 0.5 Inch
- Pad Width: 0.48 InchHole to Hole Distance: 0.75 Inch
- Strip
- Number Of Holes: 2
- Wire Size: 6 AWG Flex, 6 AWG Copper Solid, 6 AWG Copper Stranded, 6 AWG (61/#24) DLO
- Type Of Plating: Electro Plated Tin
- Color Code: Blue
- Index Number: 7
- Material: Copper
Specifications
Specifications
Burndy - YAV6CL2TC14E2FX | 518495 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YAV6CL2TC14E2FX | 518495 - Specifications
| Barrel | Standard |
|---|---|
| Bolt Hole | 1/4 Inch |
| Gauge | 6 AWG |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Lug |
| Barrel Length/?Type | Short |
